| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Frequency | |
| Mounting Type | |
| Number of Characters | |
| Operating Temperature | |
| Storage Temperature |

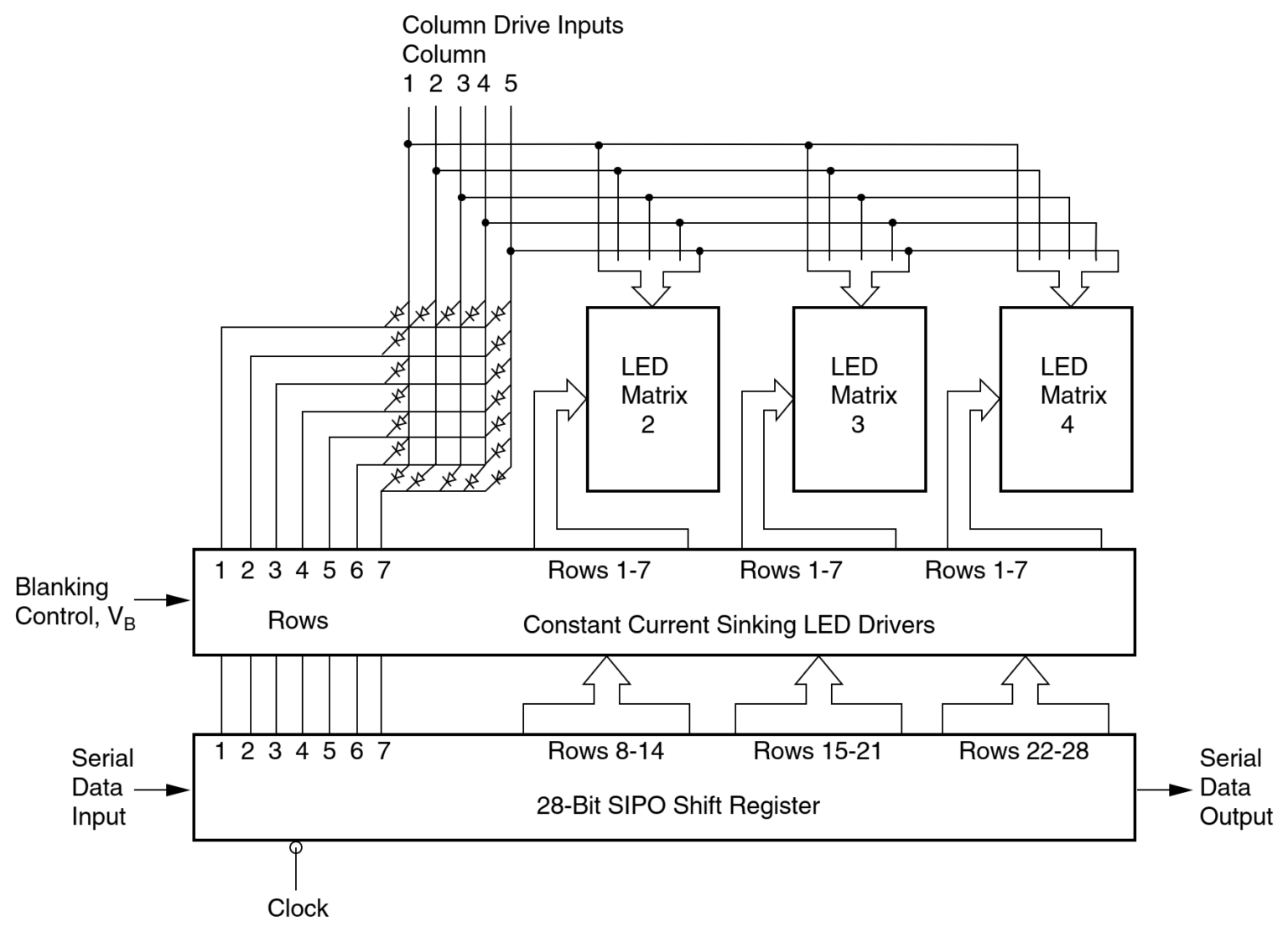

The HP HDSP-2000 is a 4-character alphanumeric LED display module, utilizing a 5x7 dot matrix for each character. Each character has a height of 3.8mm. The display integrates serial-in, parallel-out shift registers for control, simplifying interface requirements. It is designed for applications requiring clear alphanumeric readouts.
The device operates on a 5V supply and features constant current LED drivers, programmable to sink up to 13.5mA peak per diode. The HDSP-2000 is housed in a 12-pin dual-in-line (DIP) package, allowing for through-hole mounting and end-stackable configuration for longer text displays. Absolute maximum ratings include a supply voltage of up to 6V and column input voltage up to 6V.
This display series was originally developed by Hewlett-Packard and later offered in variants by Siemens. The construction often features a ceramic carrier and a glass cover, with red LEDs and an integral red glass contrast filter in some versions to enhance readability. Applications include interactive terminals, point-of-sale equipment, and portable telecommunications gear.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HDSP-2000 features a 5x7 LED matrix for each character.
The HDSP-2000 is a 4-character package.
The character height for the HDSP-2000 is 3.8mm.
The typical operating voltage for the HDSP-2000 is 5V.
The HDSP-2000 comes in a DIP-12 package.
The HDSP-2000 operates from -20°C to +70°C.
The maximum allowable package dissipation is 1.70 Watts.
