| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

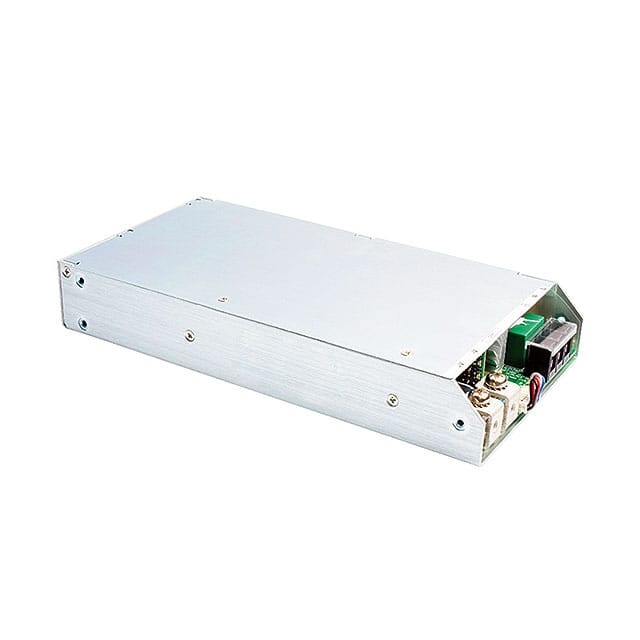

The XP Power HDS800PS24 is an 800W AC/DC power supply designed for industrial applications. It offers a 24VDC output voltage with a maximum current of 33.5A and a high efficiency of up to 92% at full load and 230VAC input.
This series features programmable output voltage and current from 0-105% via resistance, voltage, or I²C bus. It includes essential features like active current sharing, remote On/Off, remote sense, and a power OK signal. The unit operates with a universal input voltage range of 90-264 VAC and has a power factor of 0.98 typical at 115VAC.
The HDS800PS24 is built with a 1U profile and a high power density, measuring 249.0mm x 127.0mm x 40.9mm. It is designed for chassis mounting and is suitable for applications requiring ITE (Commercial) certifications, with approvals from CB, TUV, and UL.
Key electrical specifications include a start-up delay of 800ms, hold-up time of 8ms, and line/load regulation of ±1%. Protection features include overvoltage, overtemperature, overload (105% rated power, constant current), and short circuit protection with auto recovery. The operating temperature range is -20°C to 70°C with derating.
The output voltage is 24 VDC.
The maximum output power is 800W.
The efficiency is up to 92%.
The dimensions are 249.0mm x 127.0mm x 40.9mm.
The operating temperature range is -20°C to 70°C with derating.
Yes, the output voltage and current can be programmed from 0-105% of rated output.
