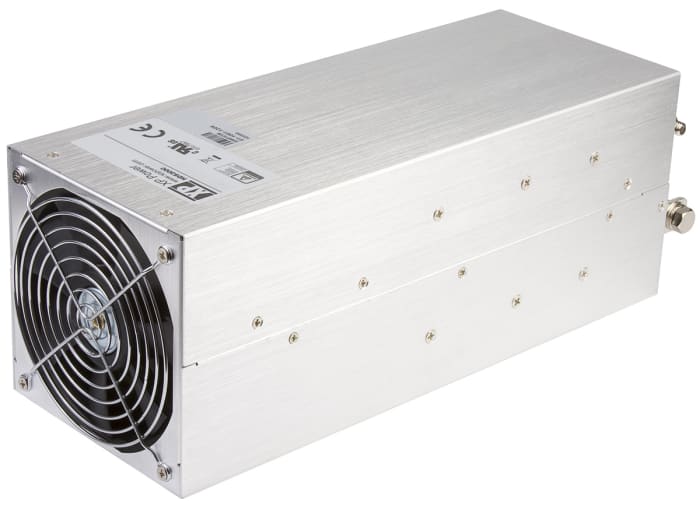

The XP Power HDS3000PS60 is a high-power AC-DC converter designed for demanding applications. This enclosed unit delivers a 60V dc output at 50A, providing a total power of 3kW. It operates with a universal input voltage range of 90 to 264 VAC and boasts a high efficiency of up to 93%.
Key features include programmable output voltage and current from 0-105%, load sharing capabilities, remote On/Off, and remote sense functionality. The power supply is designed for chassis mounting, making it suitable for integration into industrial electronic systems, lasers, and robotics.
With dimensions of 366.0 x 127.0 x 127.0mm, it offers a high power density. The operating temperature range is -20°C to +60°C. It is compliant with standards such as CB, TUV, and UL, and meets the requirements of 62368-1.
90 to 264 VAC.
60V at 50A, 3000W.
-20°C to +60°C.
Chassis mount, enclosed.
93% typical.
Adjustable output, I2C interface, load sharing, remote on/off, remote sense, standby output, universal input.
366mm x 127mm x 127mm, 5.3kg.
