| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

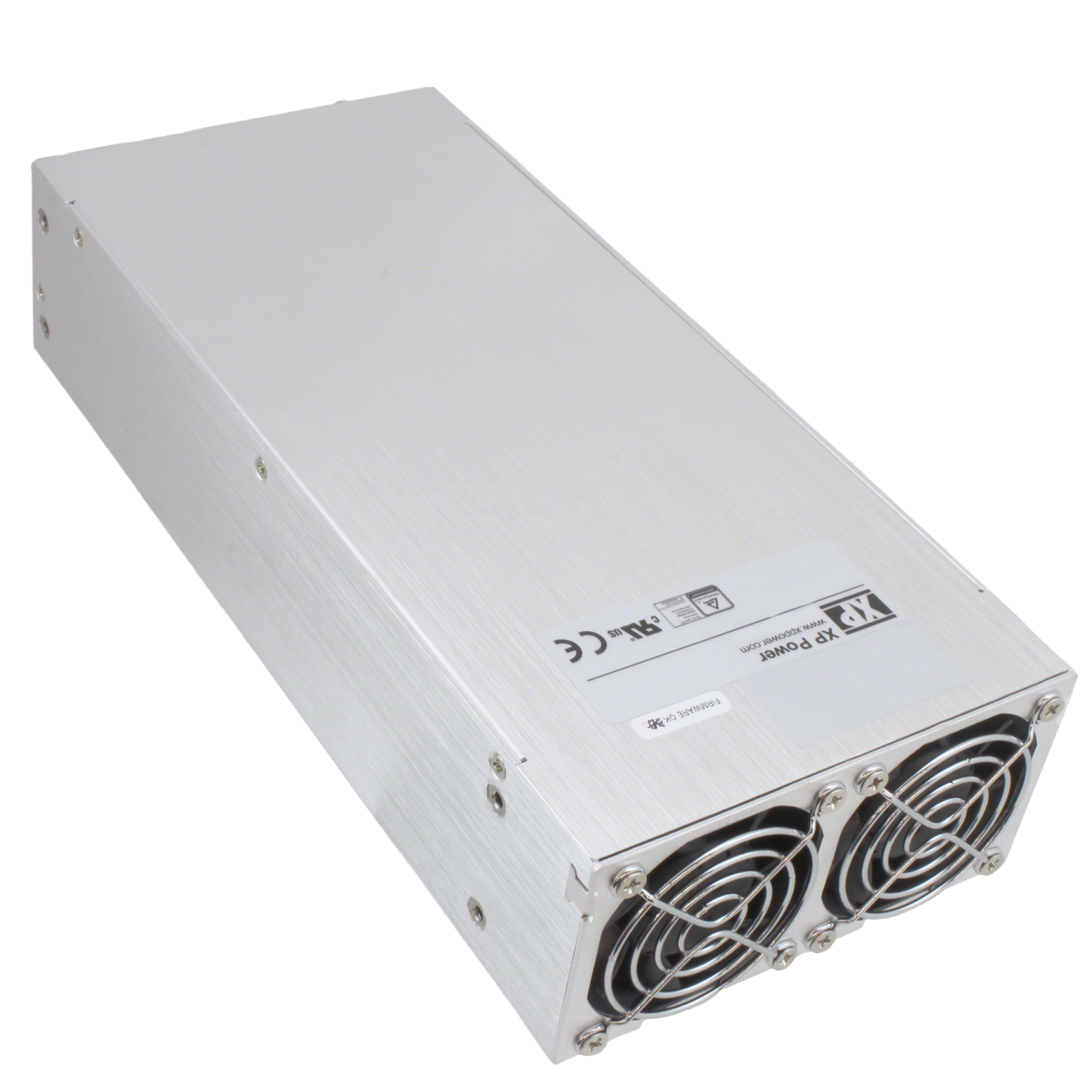

The XP Power HDS1500PS36 is a high-power AC/DC converter designed for demanding applications. It delivers a 36V output voltage with a maximum current of 41.7A, providing a total power of 1500W. This unit boasts up to 92% efficiency and features a universal input voltage range of 90-264 VAC.
Designed for flexibility, the HDS1500PS36 offers programmable output voltage and current from 0-105% via resistance, voltage, or I2C bus. It includes essential features such as active current sharing, remote on/off, remote sense, and a power OK signal. The converter operates within a temperature range of -20°C to 60°C with derating and is built for chassis mounting.
Key electrical specifications include a voltage tolerance of ±2% and current tolerance of ±3%. It also features a power factor of 0.99 at 230VAC and an inrush current of 30A. The unit is protected by an internal fuse and includes overvoltage, overtemperature, overload, and short circuit protection.
This converter is suitable for industrial electronics, robotics, lasers, and LED heating applications. It meets safety standards with approvals from CB, TUV, and UL, and complies with standard 62368-1.
The HDS1500PS36 has an output voltage range from 12 VDC to 60 VDC, with this specific model rated for 36 VDC.
The HDS1500PS36 provides a maximum output current of 41.7 A.
The HDS1500PS36 has a power rating of 1500W.
The HDS1500PS36 offers an efficiency of up to 92%.
The operating temperature range for the HDS1500PS36 is -20°C to 60°C, with derating.
The dimensions of the HDS1500PS36 are 294.5mm (Length) x 127.0mm (Width) x 63.5mm (Height).
Yes, the HDS1500PS36 supports programmable output voltage and current from 0-105% of the rated output.
