HDR100IMP40M-G-V-TH 40 position single row 2.54mm pitch through hole unshrouded male pin header with gold plated brass contacts.
Mfr Part #:

HDR100IMP40M-G-V-TH

Available from 1 distributors
Mfr Name: Chip Quik Inc.
Chip Quik Inc.
40 position single row 2.54mm pitch through hole unshrouded male pin header with gold plated brass contacts.
✓ Total Stock: 5 pcs
$ Price Range: $0.89

HDR100IMP40M-G-V-TH Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HDR100IMP40M-G-V-TH Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Housing Material
Insulation Height
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature Range
Overall Contact Length
Pitch
Shrouding
Style
Termination
Termination Style
View Similar Products (0)

HDR100IMP40M-G-V-TH Description

Short technical summary and product information.

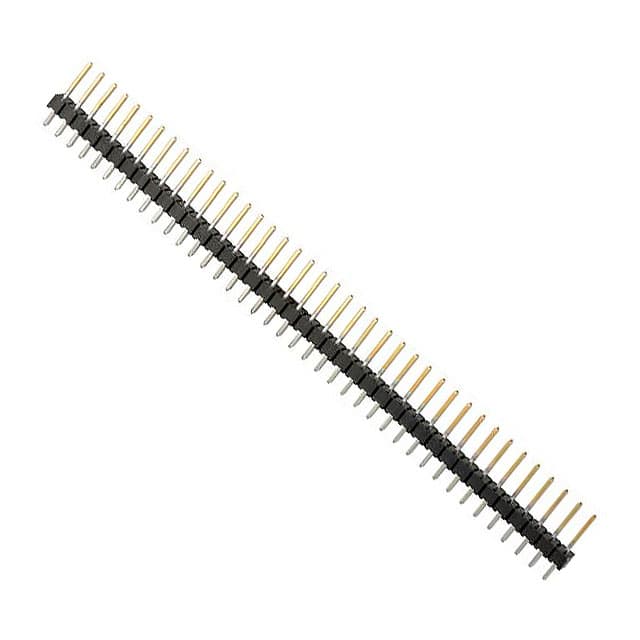

The HDR100IMP40M-G-V-TH is a 40 position, single row, 2.54mm (0.100") pitch through hole male pin header from Chip Quik Inc. This unshrouded breakaway header features square gold plated brass pins with a contact length of 6.00mm and an overall contact length of 11.54mm. The insulation height is 2.54mm. The housing is made of PA6T plastic with a 320°C melting point, and the contacts are gold plated (1µm gold over 50µm nickel) for reliable conductivity. Designed for board-to-board applications, it uses a push-pull fastening type and solder termination. The operating temperature range is -40°C to +130°C, with a maximum reflow temperature of +260°C.

HDR100IMP40M-G-V-TH Quick Information

Product Type: Header, Male Pins
Series: HDR100IMP
Canonical Name: 40 Position Single Row 2.54mm Pitch Through Hole Unshrouded Male Pin Header
Subcategory: Breakaway Header

HDR100IMP40M-G-V-TH Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HDR100IMP40M-G-V-TH Estimated Pricing

Qty Low High
1+ $0.89 $0.89

Estimated market price range - modelled values for guidance only, not live distributor offers.

HDR100IMP40M-G-V-TH Features

  • 40 position single row 2.54mm pitch header.
  • Gold plated brass contacts for reliability.
  • Through hole mounting with solder termination.
  • PA6T housing rated to +260°C reflow.
  • Operating temperature range -40°C to +130°C.

HDR100IMP40M-G-V-TH Applications

  • Board-to-board interconnection in electronic assemblies.
  • Prototyping and development boards.
  • Industrial control and automation systems.

HDR100IMP40M-G-V-TH FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the HDR100IMP40M-G-V-TH have?

40 positions in a single row.

What is the pitch of this header?

2.54mm (0.100").

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-40°C to +130°C.

What is the contact material and finish?

Brass pins with gold plating (1µm gold over 50µm nickel).
