| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Voltage | |
| Applications | |
| Approval Agency | |
| Current | |
| DC Voltage | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Type | |
| Length | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Voltage | |
| Width |

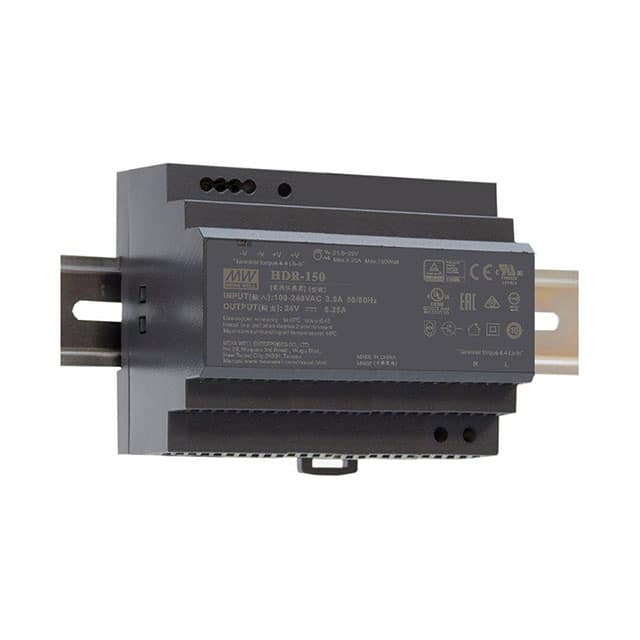

The Mean Well USA HDR-150-24 is a 156W AC/DC DIN Rail power supply designed for industrial and commercial applications. It delivers a single 24V output at 6.25A with a nominal efficiency of 90.5%. The unit accepts a universal AC input of 85 to 264 VAC or a DC input of 120V, making it suitable for global use.
Key electrical specifications include an isolation voltage of 4 kV and an adjustable output feature. The power supply operates over a wide temperature range of -30°C to 70°C with derating, ensuring reliable performance in demanding environments. It measures 105.0mm x 54.5mm x 90.0mm (4.13" x 2.15" x 3.54") and is approved by CB, CE, cULus, cURus, EAC, and TUV.
This unit is intended for ITE (commercial) and laboratory applications. Its compact DIN Rail form factor simplifies installation in control cabinets and equipment racks.
| Qty | Low | High |
|---|---|---|
| 1+ | $37.60 | $37.60 |
| 5+ | $35.80 | $35.80 |
| 10+ | $34.30 | $34.30 |
| 20+ | $33.30 | $33.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 24V nominal.
The output current is 6.25A.
The power rating is 156W.
The AC input voltage range is 85 to 264 VAC. DC input is 120V.
The operating temperature range is -30°C to 70°C with derating.
It is approved by CB, CE, cULus, cURus, EAC, and TUV.
The efficiency is 90.5%.
