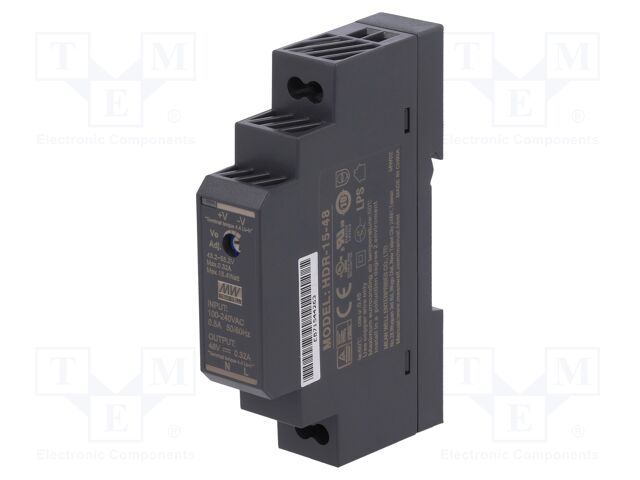

The HDR-15-48 is a 15W AC/DC DIN Rail power supply manufactured by Mean Well USA. It provides a single 48V output with a maximum current of 320mA. The unit accepts a universal AC input from 85 to 264 VAC or a DC input up to 120V, making it suitable for global applications. It achieves an efficiency of 87% and features 4 kV isolation voltage for safety.
This power supply is designed for industrial and ITE (commercial) applications. It has been approved by CB, CE, cULus, cURus, and TUV agencies, ensuring compliance with international standards. The operating temperature range is -30°C to 70°C with derating, allowing use in harsh environments.
The HDR-15-48 comes in a compact module package with dimensions of 54.5mm x 17.5mm x 90.0mm (2.15" x 0.69" x 3.54"). It is designed for DIN Rail mounting, simplifying installation in control panels. The output is adjustable, providing flexibility for various voltage requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.50 | $12.50 |
| 5+ | $11.90 | $11.90 |
| 10+ | $11.40 | $11.40 |
| 20+ | $11.10 | $11.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 85 to 264 VAC, and it can also accept DC input up to 120V.
It is designed for DIN Rail mounting.
-30°C to 70°C with derating.
Yes, it is RoHS3 compliant.
87% typical.
4 kV.
CB, CE, cULus, cURus, TUV.
