| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Voltage | |
| Applications | |
| Approval Agency | |
| Current | |
| DC Voltage | |
| Efficiency | |
| Features | |
| Height | |
| Input Type | |
| Length | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Voltage | |
| Width |

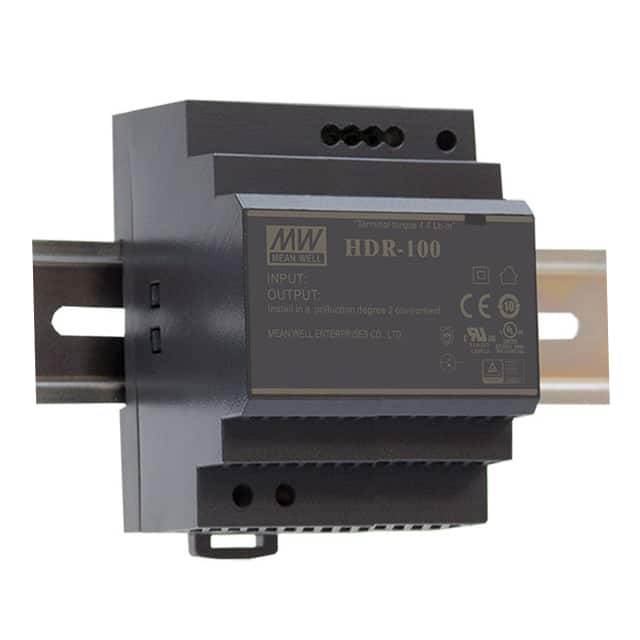

The Mean Well USA HDR-100-24N is a single-output DIN rail power supply designed for industrial and commercial applications. It delivers a nominal output of 24V DC at 4.2A, with a total power of 101W. The unit accepts a wide range of AC input voltages from 85 to 264 VAC, as well as a 120V DC input, making it suitable for global use. With a typical efficiency of 90%, it minimizes energy loss and heat generation. The power supply features adjustable output voltage and universal input, providing flexibility in various setups. It is certified to CB, CE, cULus, cURus, and TUV standards, ensuring compliance with international safety requirements. The operating temperature range is -30°C to 70°C with derating, allowing operation in harsh environments. The enclosure measures 54.5mm x 70.0mm x 90.0mm (2.15" x 2.76" x 3.54") and is designed for DIN rail mounting, simplifying installation in control cabinets. This power supply is suitable for ITE (commercial) applications and is RoHS3 compliant (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $29.80 | $29.80 |
| 5+ | $28.40 | $28.40 |
| 10+ | $27.20 | $27.20 |
| 20+ | $26.40 | $26.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-30°C to 70°C with derating.
It is listed as RoHS3 Compliant, but this data is unverified.
24V DC.
4.2A.
85-264VAC or 120VDC.
90% typical.
CB, CE, cULus, cURus, TUV.
