| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Type |

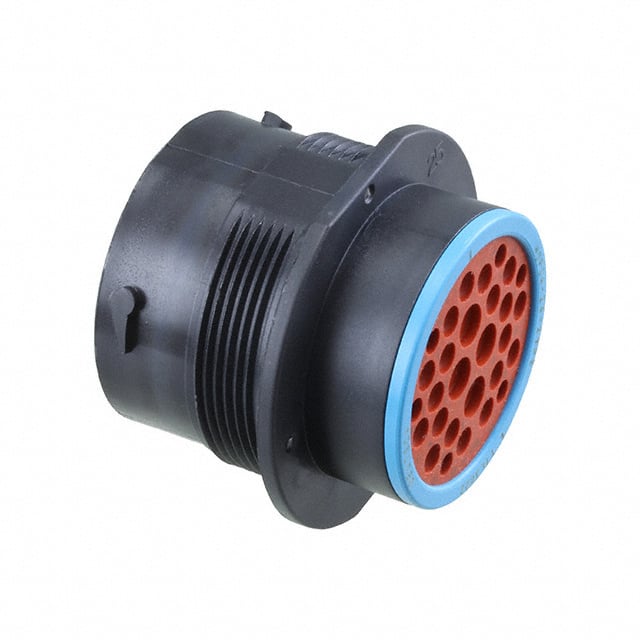

The TE Connectivity HDP24-24-29PE is a circular connector housing designed for use with male pin contacts. It features a receptacle housing configuration with 29 positions arranged in contact sizes 12 (4), 16 (19), and 20 (6). The housing is made of glass-filled polyamide (PA66/Nylon 6/6) in black color, providing durability and a flammability rating of UL94 V-1.
This housing is panel mounted with a bulkhead front side nut mounting feature and uses a bayonet lock fastening system for secure mating. It is keyed for proper orientation and includes a dust cap for protection when unmated. The housing is unshielded and supports crimp termination for contacts.
With an IP68 rating for dust tight and waterproof protection, this housing is suitable for demanding environments. It is RoHS3 compliant and REACH unaffected, though these compliance claims are unverified. The part is commonly used in industrial and automotive applications requiring reliable circular connections.
29 positions.
Panel mount with bulkhead front side nut.
IP68 - dust tight and waterproof.
Polyamide (PA66), Nylon 6/6, glass filled.
UL94 V-1.
It accepts male pins with crimp termination.
No, it is unshielded.
