| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Type |

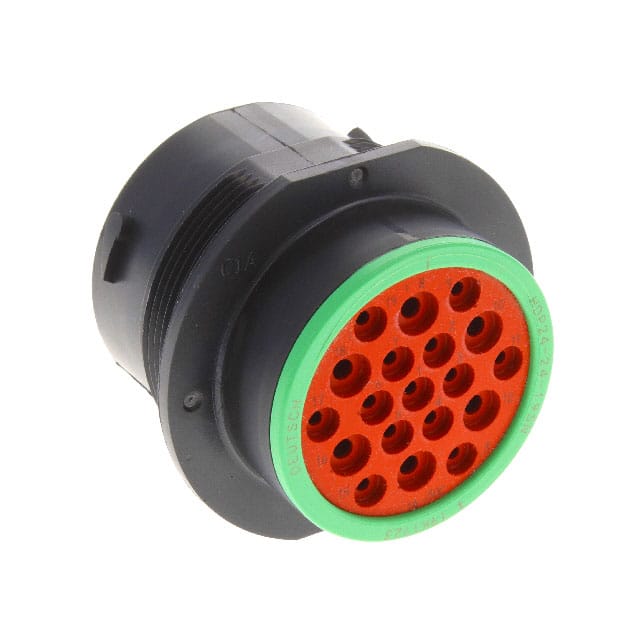

The HDP24-24-19SN is a circular connector receptacle housing from TE Connectivity Deutsch Connectors, designed for use with female sockets. It features 19 positions with shell size 24-19 and accommodates contact sizes 12 (6 contacts) and 16 (13 contacts). The housing is keyed for orientation and secured via bayonet lock.
This housing is panel mount with a bulkhead front side nut, making it suitable for applications requiring a sealed interface. It is constructed from black polyamide (PA66) nylon 6/6 with glass filling, offering a flammability rating of UL94 V-1. The connector is unshielded and includes a dust cap for protection.
With an IP68 rating for dust-tight and waterproof performance, this housing is ideal for harsh environments. The crimp termination contacts are not included but are compatible. This product does not include the female socket contacts or mating plug.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.40 | $15.40 |
| 10+ | $14.09 | $14.09 |
| 30+ | $13.49 | $13.49 |
| 60+ | $13.22 | $13.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
19 positions.
Panel mount with bulkhead front side nut.
IP68 - Dust tight, waterproof.
24-19.
Contact size 12 (6 contacts) and 16 (13 contacts).
Bayonet lock.
