| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| HI-POT | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| Storage Temperature | |
| Voltage | |
| Width |

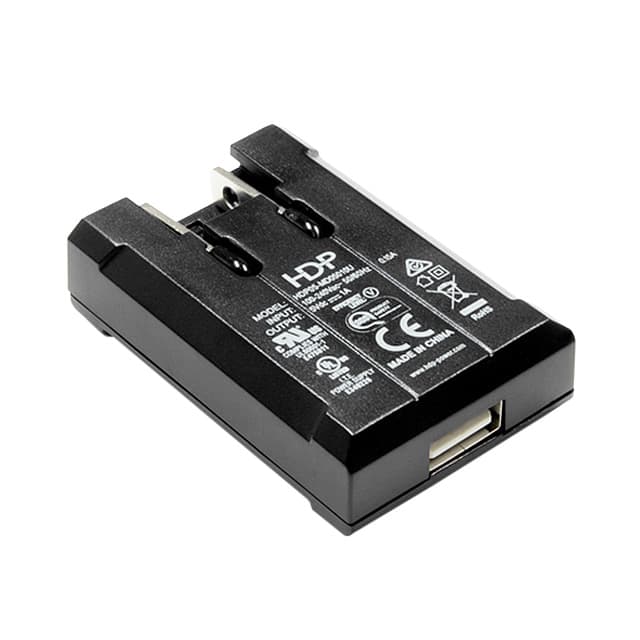

The HDP Power HDP05-MD-BUSB-4 is a versatile 5W AC/DC wall mount power adapter designed for global markets. It operates with an input voltage range of 90-264 VAC and a frequency of 47-63Hz, delivering a stable 5V and 1A output.
This adapter meets CEC VI efficiency standards and offers low standby power consumption under 20mW. It includes over-voltage and short-circuit protection for enhanced safety. The slim profile design with foldable US blades and interchangeable inputs makes it suitable for international use.
Certified to IEC 62368-1 and IEC 60601 standards, this adapter is ideal for both Medical and ITE (Commercial) applications. It features a USB A receptacle for output connectivity and is designed as a Class II, wall mount unit.
Key environmental specifications include an operating temperature range of 0°C to 50°C and a storage temperature range of -20°C to 85°C. It also has a minimum MTBF of 100,000 hours at 25°C.
0°C to 50°C.
90 to 264 VAC at 47 to 63 Hz.
5.0V at 1000mA (1A) maximum.
Yes, it includes over voltage and short circuit protection.
Meets CEC VI efficiency standards.
100,000 hours minimum at 25°C.
CB, CE, C-Tick, cULus, and SAA.
