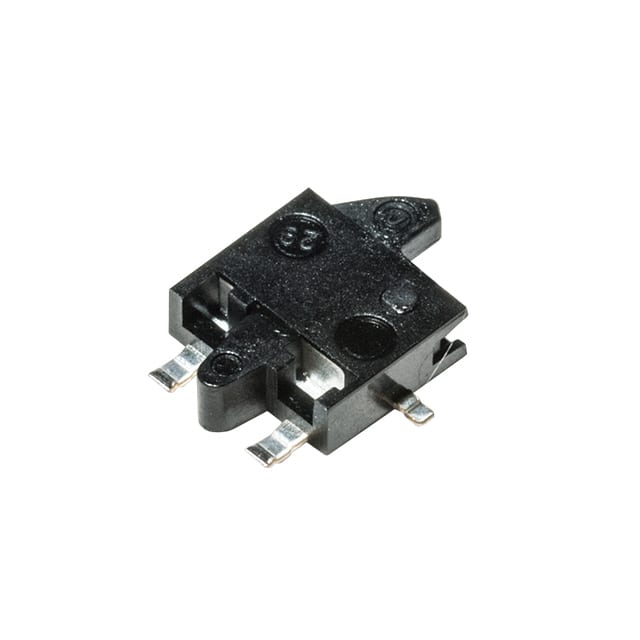

HDP001R The HDP001R is a limit switch with SPST-NO contact configuration, rated for 1mA at 5V. It features an angled toggle actuator and is designed for limit detection applications.
Mfr Part #:

HDP001R

Available from 2 distributors
Mfr Name: C&K Components
C&K Components
The HDP001R is a limit switch with SPST-NO contact configuration, rated for 1mA at 5V. It features an angled toggle actuator and is designed for limit detection applications.
✓ Total Stock: 2,601 pcs
$ Price Range: $0.75

HDP001R Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
Spartce Electronics. ✓
Non-Authorised Inventory information
101 pcs
On Request
101 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HDP001R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Circuit
Contact Resistance
Current Rating (Amps)
Features
Halogen Free
Insulation Resistance
Lead Style
Mounting Type
Operating Temperature
Pretravel
Storage Temperature
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

HDP001R Description

Short technical summary and product information.

The HDP001R is a limit switch manufactured by C&K Components. It features a single-pole, single-throw normally open (SPST-NO) circuit with a contact rating of 1mA at 5V DC. The switch has an actuator type described as an angled toggle (detector), suitable for limit detection in various mechanical systems. It is packaged in a surface-mount, right-angle configuration with gull wing terminations, making it suitable for PCB mounting.



This switch has an operating life of at least 100,000 cycles and an operating temperature range from -20°C to 70°C. Its storage temperature range extends from -30°C to 80°C. The device offers a contact resistance of less than 500Ω initially and an insulation resistance greater than 100 MΩ. It is compliant with RoHS standards and is halogen-free. The packaging includes a standard quantity of 2,500 units, supplied on tape and reel for automated assembly.

HDP001R Quick Information

Product Type: Limit Switch
Canonical Name: HDP001R Switch Detector

HDP001R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HDP001R Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

HDP001R Features

  • Rated for 1mA at 5V DC
  • SPST-NO circuit configuration
  • Mechanical actuator with angled toggle
  • Surface mount, right-angle package
  • Operates from -20°C to 70°C

HDP001R Applications

  • Used in limit detection applications
  • Suitable for PCB mounting in electronic devices
  • Ideal for mechanical position sensing
  • Applied in automation systems

HDP001R FAQs

3 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the HDP001R?

-20°C to 70°C

What type of package does the HDP001R come in?

Surface Mount, Right Angle with Gull Wing terminations

Is the HDP001R RoHS compliant?

Yes, it is RoHS3 compliant
