| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Protection | |
| Region Utilized | |
| Ripple | |
| Storage Temperature | |
| Voltage | |
| Width |

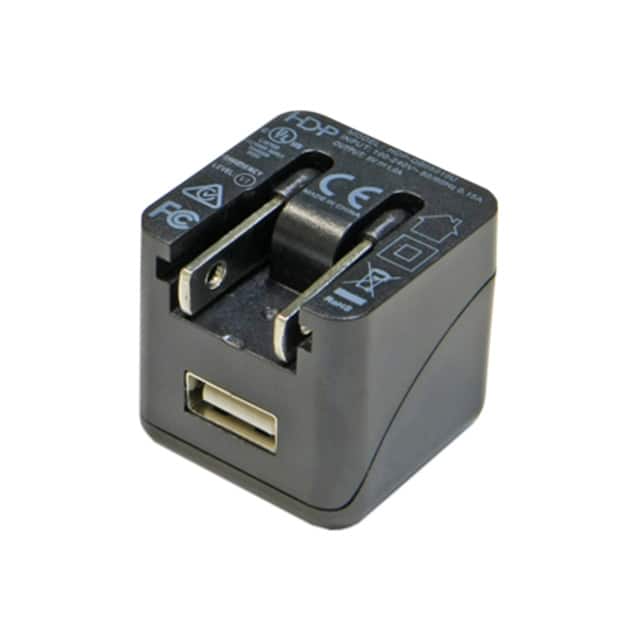

The HDP Power HDP-QB-BUSB-B is a compact AC/DC wall mount adapter designed for global markets, offering a maximum output power of 5W at 5V.
This adapter operates within a wide input voltage range of 90 to 264 VAC and a frequency of 50 to 60 Hz. It meets CEC VI efficiency standards and boasts low standby power consumption under 100mW. Safety features include over-voltage and short-circuit protection. The operating temperature range is from 0°C to 40°C, with a storage temperature range of -20°C to 60°C.
Designed for convenience, the HDP-QB-BUSB-B features interchangeable inputs for global use and a USB A receptacle output. Its small form factor measures 32mm cubed. The adapter is suitable for ITE (Commercial) applications and has received numerous safety and EMC certifications, including CB, CE, cULus, FCC, KC, PSE, RCM, and SAA.
Compliance includes RoHS3, REACH Unaffected, and MSL 1. The adapter is rated for 50,000 hours MTBF at 25°C.
The HDP-QB-BUSB-B adapter provides a 5V output voltage and a 1A (1000mA) output current.
The maximum output power for the HDP-QB-BUSB-B adapter is 5W.
The adapter accepts an input voltage range of 90 to 264 VAC.
This adapter meets the CEC VI efficiency standard.
The operating temperature range is from 0°C to 40°C.
