| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

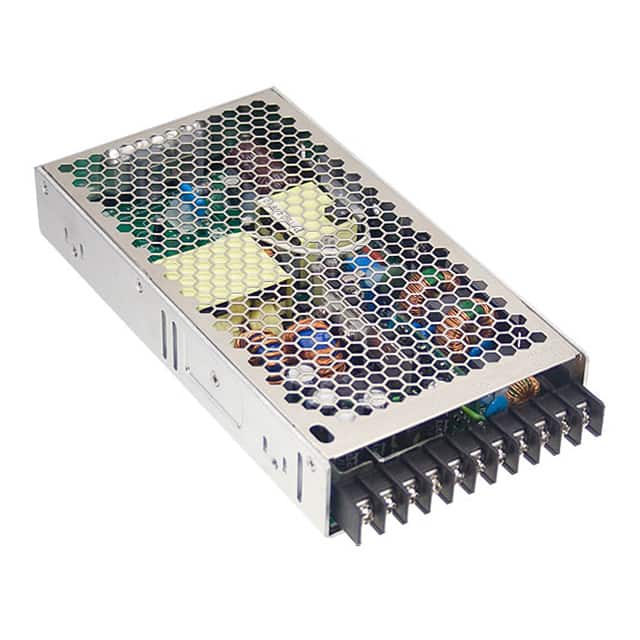

The Mean Well HDP-190 is an enclosed AC/DC converter designed for various applications. It provides dual outputs of +3.8V at 33A and +2.8V at 20A, with a total power output of 192W.
Key electrical specifications include a universal AC input range of 90-264VAC, active Power Factor Correction (PFC) with a typical power factor of 0.94 at 230VAC, and a high efficiency of up to 86%. Protections include short circuit, overload, over voltage, and over temperature.
This converter features a low profile of 36mm and is conformal coated for dust and moisture protection. Cooling is achieved through free air convection, making it a fan-less design for silent operation. The unit is designed for chassis mounting.
Compliance includes BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2, and EAC TP TC 020 standards. It is also approved by CB, CCC, CE, cURus, and TUV.
The HDP-190 provides dual outputs: +3.8V at 33A and +2.8V at 20A.
The HDP-190 has a maximum power output of 192W.
The HDP-190 accepts a universal AC input voltage range of 90 to 264 VAC.
The HDP-190 has a typical efficiency of 86%.
The HDP-190 includes protections for short circuit, overload, over voltage, and over temperature.
The dimensions of the HDP-190 are 215.0mm x 115.0mm x 36.0mm.
The HDP-190 operates within a temperature range of -30°C to +70°C, with derating.
