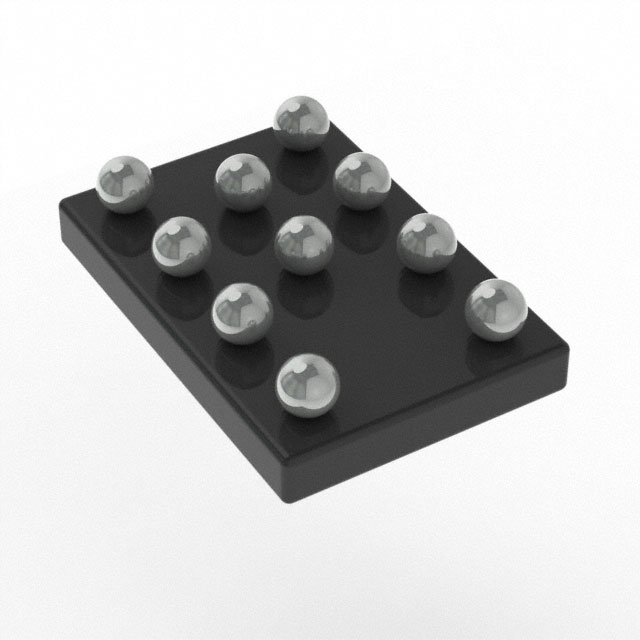

HDMI2C2-5F2 HDMI2C2-5F2 is a 5-circuit mixed technology ESD protection and signal booster device from STMicroelectronics. It is designed for HDMI applications and comes in a 10-WLCSP surface mount package.
Mfr Part #:

HDMI2C2-5F2

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
HDMI2C2-5F2 is a 5-circuit mixed technology ESD protection and signal booster device from STMicroelectronics. It is designed for HDMI applications and comes in a 10-WLCSP surface mount package.
✓ Total Stock: 5,000 pcs
$ Price Range: $0.31 - $0.72

HDMI2C2-5F2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HDMI2C2-5F2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Mounting Type
Number of Circuits
Supplier Device Package
Tape & Reel
Technology
View Similar Products (0)

HDMI2C2-5F2 Description

Short technical summary and product information.

The HDMI2C2-5F2 is a mixed technology TVS device from STMicroelectronics, designed for ESD protection and signal boosting in HDMI applications. It features 5 independent circuits, making it suitable for protecting multiple data lines. The device employs a mixed technology approach, combining different protection mechanisms for optimal performance. It is packaged in a compact 10-WLCSP (1.98x1.36) surface mount package, ideal for space-constrained designs. The mounting type is surface mount, compatible with standard PCB assembly processes. The device is RoHS3 compliant and has an MSL rating of Level 1, indicating unlimited floor life. It is designed for HDMI applications, providing protection against electrostatic discharge events while maintaining signal integrity.

HDMI2C2-5F2 Quick Information

Product Type: TVS - Mixed Technology
Canonical Name: HDMI2C2-5F2
Subcategory: ESD Protection

HDMI2C2-5F2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HDMI2C2-5F2 Estimated Pricing

Qty Low High
1+ $0.72 $0.72
10+ $0.51 $0.51
25+ $0.45 $0.45
100+ $0.40 $0.40
250+ $0.37 $0.37
1,000+ $0.34 $0.34
2,500+ $0.32 $0.32
5,000+ $0.31 $0.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

HDMI2C2-5F2 Features

  • 5-circuit mixed technology design.
  • Surface mount 10-WLCSP package.
  • Designed for HDMI applications.
  • ESD protection and signal boosting.
  • RoHS3 compliant and REACH unaffected.

HDMI2C2-5F2 Applications

  • Used in HDMI interface protection circuits.
  • Suitable for ESD protection of high-speed data lines.
  • Ideal for consumer electronics with HDMI ports.
  • Provides signal boosting for HDMI compliance.

HDMI2C2-5F2 FAQs

7 frequently asked questions generated from this part’s specifications.
How many circuits does the HDMI2C2-5F2 have?

5 circuits.

What technology is used in the HDMI2C2-5F2?

Mixed technology.

What is the mounting type of the HDMI2C2-5F2?

Surface mount.

What package is the HDMI2C2-5F2 available in?

10-WLCSP (1.98x1.36) from the 10-WFBGA/WLCSP package family.

What are the applications for the HDMI2C2-5F2?

HDMI.

Is the HDMI2C2-5F2 RoHS compliant?

Yes, it is listed as RoHS3 compliant.

What is the MSL rating of the HDMI2C2-5F2?

MSL Level 1 (unlimited floor life).
