| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

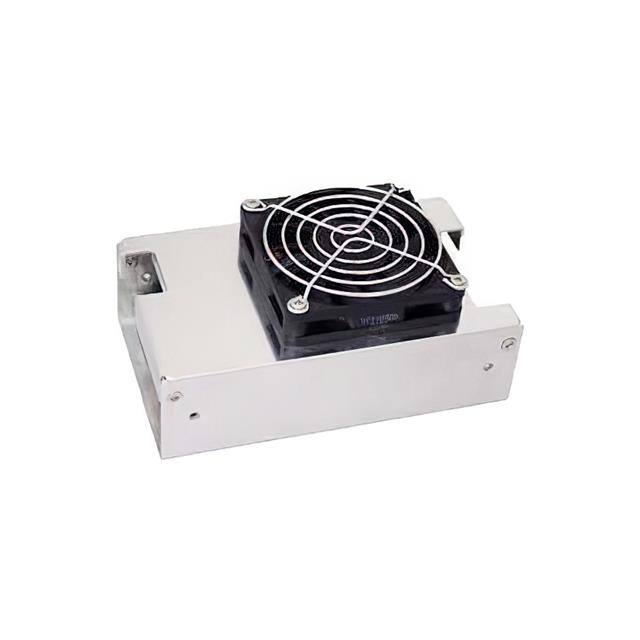

The HDM500E-124 from Digital Power Corporation is an enclosed AC DC converter with a power rating of 500W and an output current of 20.8A. It offers a high efficiency of 91% and features such as adjustable output, DC input capability, power factor correction (PFC), remote on/off control, and universal input.
Designed for demanding applications, this converter provides 4 kV of isolation and is approved by CB, CE, and cURus. It meets standard numbers 60601-1 and 60950-1, making it suitable for ITE (Commercial) and Medical applications.
The unit is designed for chassis mounting and has dimensions of 139.7mm x 82.6mm x 61.5mm. It operates within a temperature range of -30°C to 70°C with derating. The introtext indicates that suffix "E" signifies the inclusion of a U-channel and cover.
-30°C to 70°C with derating.
91%.
4 kV.
20.8 A.
Chassis Mount.
139.7 mm length, 82.6 mm width, 61.5 mm height.
