| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

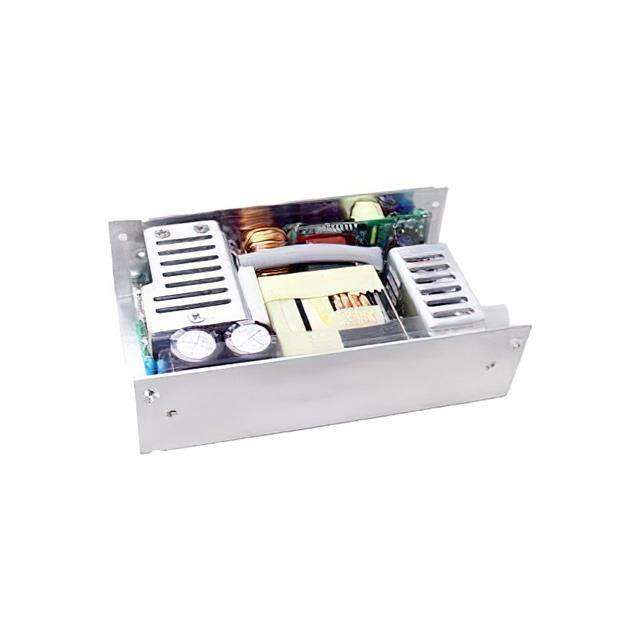

The HDM500E-112 from Digital Power Corporation is an enclosed AC DC converter designed for ITE (Commercial) and Medical applications. It offers a robust power output of 498W with an efficiency rating of 89%.
This converter features a universal input and is designed for chassis mounting. Key features include adjustable output, DC input capability, Power Factor Correction (PFC), and remote on/off functionality. The operating temperature range is -30°C to 70°C with derating. It meets safety standards such as 60601-1 and 60950-1 and carries certifications from CB, CE, and cURus.
The dimensions are 139.7mm x 82.6mm x 61.5mm. The HDM500E-112 has a single output and provides 4 kV of isolation voltage.
The power output is 498W.
The operating temperature range is -30°C to 70°C (With Derating).
It uses chassis mount.
Applications include ITE (Commercial) and Medical.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
The REACH status is REACH Unaffected.
