| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Weight | |
| Width |

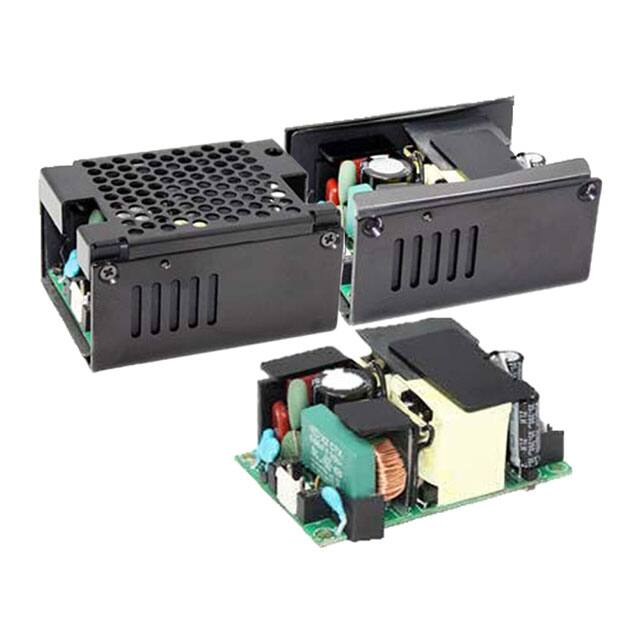

The HDM120O-112 from Digital Power Corporation is a 120-watt AC-DC switching power supply designed for medical applications. It offers a 12V DC output voltage and accepts a universal input range of 90-264VAC.
This open frame power supply boasts high efficiency up to 91% and a power density suitable for various applications. It operates within a wide temperature range of -30°C to +70°C with derating and meets stringent safety approvals including UL, IEC, and EN 60601 3.1 Edition.
The unit is designed for chassis mounting and features essential protections. Its compact dimensions and robust performance make it an ideal choice for medical equipment and other demanding industrial uses requiring reliable power conversion.
90-264 VAC.
Open frame package with chassis mount.
-30°C to 70°C with derating.
12V at 10A.
Up to 91%.
>250,000 hours at 25°C.
Yes, PFC function >0.9.
