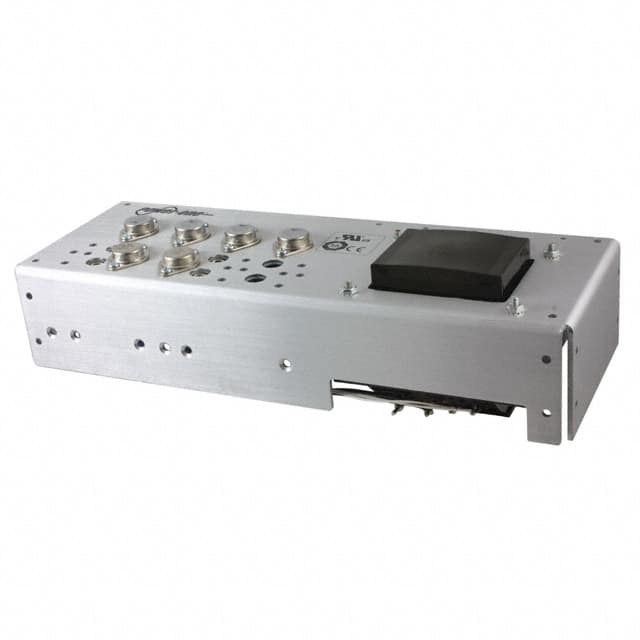

The Bel Power Solutions HDD15-5-AG is a linear AC DC converter designed for ITE (Commercial) applications. It delivers 150W of power with a -15V output voltage and a 5A output current. This model features adjustable output and remote sense capabilities, enhancing its flexibility in various system designs.
The converter is designed for chassis mounting, making it suitable for integration into industrial equipment and enclosures. It operates within a temperature range of 0°C to 50°C and boasts an efficiency of 55%. Key electrical specifications include ±0.05% line and load regulation, and automatic current limit/foldback for short circuit protection.
Additional features include a high MTBF of over 200,000 hours and transformer insulation meeting Class F (155°C). The unit is RoHS3 Compliant, with MSL 1 Unlimited and REACH Unaffected status.
0°C to 50°C.
-15V.
55%.
Automatic current limit/foldback for short circuit protection; overvoltage protection is optional for non-5V models.
Over 200,000 hours per MIL-HDBK-217D.
100, 120, and 240 Vac with tolerances.
5A.
