Mfr Part #:

HDBNC-J-P-GN-RA-BH2

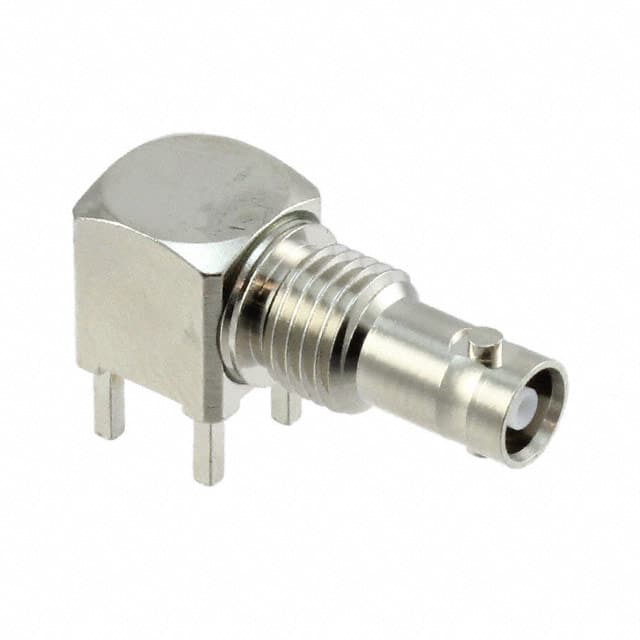

Name: HDBNC-J-P-GN-RA-BH2
Brand: Samtec Inc.
SKU: HDBNC-J-P-GN-RA-BH2

Mfr Name: Samtec Inc.

Description:

CONN HDBNC JACK R/A 75 OHM PCB

Stock on Request

HDBNC-J-P-GN-RA-BH2 Description

Short technical summary and product information.

CONN HDBNC JACK R/A 75 OHM PCB

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Samtec Inc.

CONN HDBNC JACK R/A 75 OHM PCB

Category	Coaxial Connector (RF) Assemblies
Manufacturer Name	Samtec Inc.
Center Contact Material	Beryllium Copper
Connector Style	BNC, HD
Connector Type	Jack, Female Socket
Contact Termination	Solder
Fastening Type	Bayonet Lock
Features	12G-SDI
Frequency	6 GHz
Housing Color	Silver
Impedance	75Ohm
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Ports	1
Shield Termination	Solder
