Mfr Part #:

HDB-M4-080M236X

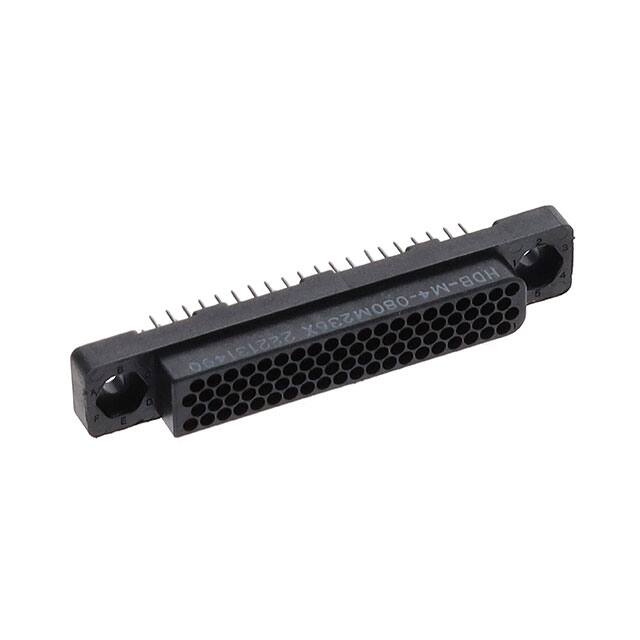

Name: HDB-M4-080M236X
Brand: Amphenol Aerospace Operations
SKU: HDB-M4-080M236X

Description:

MOTHER BOARD 80POS

Stock on Request

HDB-M4-080M236X Description

Short technical summary and product information.

MOTHER BOARD 80POS

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

HDB-M4-080M226X

Amphenol Aerospace Operations

MOTHER BOARD 80POS

HDB-M4-080M246X

Amphenol Aerospace Operations

MOTHER BOARD 80POS

Category	Specialized
Manufacturer Name	Amphenol Aerospace Operations
Color	Black
Connector Style	High Density (HDC, HDI, HPC)
Connector Type	Receptacle, Female Sockets
Connector Usage	Backplane, Motherboard
Contact Finish	Tin-Lead
Contact Finish Thickness	100.0µin (2.54µm)
Features	Jackscrew
Mounting Type	Through Hole
Number of Columns	10
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	8
Pitch	0.070" (1.78mm)
Termination	Solder
