| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Data Rate | |
| Features | |
| Halogen Free | |
| Height Above Board | |
| Industrial Grade | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

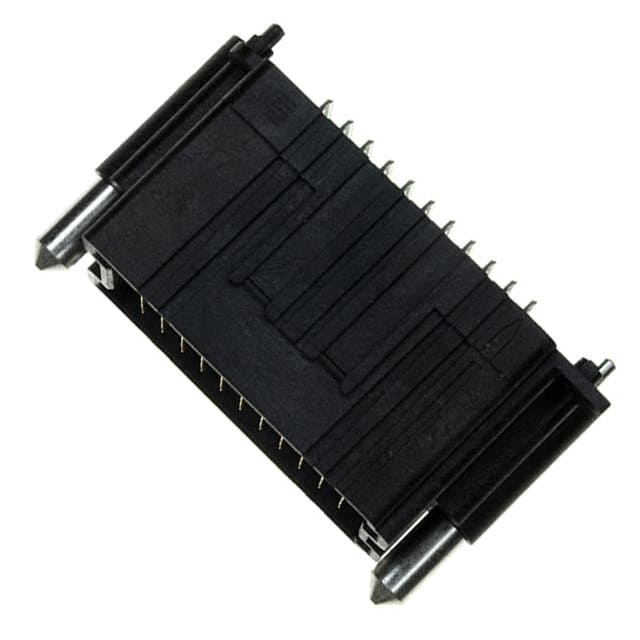

The Samtec HDAM-11-17.0-S-13-2 is a high-density open-pin-field array plug connector from the HD Mezz series. It features 143 positions arranged in 13 rows with a 1.20mm pitch and a 2.00mm row pitch, making it suitable for high-density board-to-board mezzanine applications.
This connector is rated for up to 1.8A per pin and supports data rates up to 9 GHz / 18 Gbps. It is designed for a working voltage of 230 VAC / 325 VDC. The HDAM-11-17.0-S-13-2 utilizes solder charge termination for ease of processing and is surface mountable. It features integrated guide posts to minimize contact damage during mating and unmating cycles, rated for a minimum of 100 cycles.
The connector is constructed with a copper alloy contact material and a black LCP insulator. The contact area is plated with 30µin gold over 50µin nickel. It is packaged in trays with a standard quantity of 24 parts per package. The operating temperature range is -55°C to +125°C.
| Qty | Low | High |
|---|---|---|
| 24+ | $51.14 | $51.14 |
| 48+ | $47.13 | $47.13 |
| 120+ | $45.08 | $45.08 |
| 264+ | $44.00 | $44.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 143 positions arranged in 13 rows.
The pitch is 1.20mm with a row pitch of 2.00mm.
The current rating is 1.8A per pin with 6 adjacent pins powered.
The working voltage is 230 VAC / 325 VDC.
The connector is surface mount (SMT) with solder charge termination.
The operating temperature range is -55°C to +125°C.
It supports data rates up to 9 GHz / 18 Gbps.
