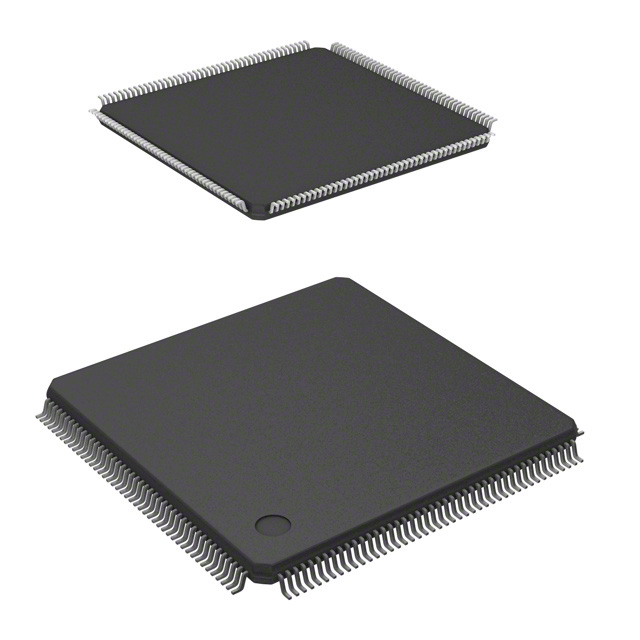

HD64F7065AF60V The Renesas HD64F7065AF60V is a 32-bit microcontroller featuring a 60MHz SH-2 DSP core. It offers 256KB of Flash memory and 8KB of RAM.
Mfr Part #:

HD64F7065AF60V

Available from 2 distributors
Mfr Name: Renesas
Renesas
The Renesas HD64F7065AF60V is a 32-bit microcontroller featuring a 60MHz SH-2 DSP core. It offers 256KB of Flash memory and 8KB of RAM.
✓ Total Stock: 2,673 pcs

HD64F7065AF60V Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,543 pcs
On Request
1543 pcs On Request 1 On Request On Request On Request On Request On Request
Romaks Technologies ✓
Non-Authorised Inventory information
1,130 pcs
On Request
1130 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HD64F7065AF60V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Frequency
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
View Similar Products (0)

HD64F7065AF60V Description

Short technical summary and product information.

This Renesas HD64F7065AF60V is a 32-bit microcontroller from the SuperH® SH7060 series, built on a single-core SH-2 DSP architecture for efficient real-time signal processing.



It operates at a speed of 60MHz and integrates 256KB of Flash program memory along with 8KB of RAM. The device provides 110 I/O pins and supports various connectivity options including EBI/EMI and SCI. Key peripherals include a DMA controller, Power-On Reset (POR), Pulse Width Modulation (PWM), and a Watchdog Timer (WDT) for enhanced system reliability.



For analog interfacing, it includes 8 channels of 10-bit A/D conversion and 2 channels of 8-bit D/A conversion. The microcontroller is housed in a 176-pin LQFP package, measuring 24x24mm, and is designed for surface mounting.



It operates within a supply voltage range of 3V to 3.6V and has an operating temperature range of -20°C to 75°C (TA). This device is suitable for digital signal processing and control applications requiring robust performance and integrated features.

HD64F7065AF60V Quick Information

Product Type: Microcontroller
Series: SuperH® SH7060
Canonical Name: Renesas HD64F7065AF60V Microcontroller
Subcategory: Embedded Microcontrollers

HD64F7065AF60V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HD64F7065AF60V Features

  • 32-bit SH-2 DSP single-core processor.
  • 60MHz operating speed for fast processing.
  • 256KB Flash program memory.
  • 8KB RAM size.
  • 110 I/O pins for versatile interfacing.

HD64F7065AF60V Applications

  • Embedded control systems in industrial equipment
  • Automotive engine management modules
  • Consumer electronics requiring moderate processing
  • IoT devices with extensive I/O needs

HD64F7065AF60V FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the HD64F7065AF60V?

The operating voltage is 3V to 3.6V.

What package type is the HD64F7065AF60V microcontroller supplied in?

It is supplied in a 176-LQFP package.

What is the operating temperature range for this microcontroller?

The operating temperature range is -20°C to 75°C (TA).

What is the Flash program memory size of the HD64F7065AF60V?

The Flash program memory size is 256KB (256K x 8).

What is the core processor of the HD64F7065AF60V?

The core processor is the SH-2 DSP.

How many I/O pins does the HD64F7065AF60V have?

It has 110 I/O pins.
