| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,053 pcs
|
12053 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Frequency | |
| Mounting Type | |
| Number of I/O | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| RAM Size | |
| Voltage Supply |
This 32-bit microcontroller from Renesas, part number HD64F7055SF40LNV, is based on the SH-2 DSP core and operates at speeds up to 60MHz. It features 256KB of Flash program memory and 8KB of RAM, making it suitable for embedded control applications.
The device includes 110 I/O pins and supports various peripherals such as DMA, Power-On Reset, PWM, and a Watchdog Timer. Connectivity options include EBI/EMI and SCI interfaces. It also incorporates 8-channel, 10-bit A/D converters and 2-channel, 8-bit D/A converters.

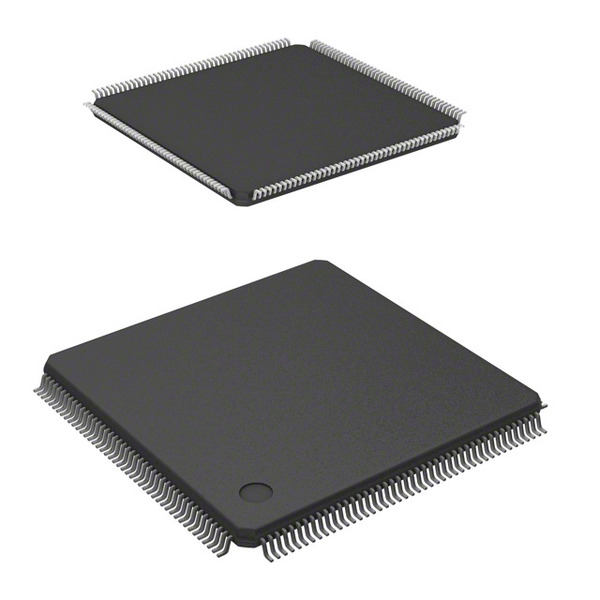

The HD64F7055SF40LNV is housed in a 176-pin LQFP package with dimensions of 24x24mm, designed for surface mounting. It operates within a voltage range of 3V to 3.6V and has an operating temperature range of -20°C to 75°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.50 | $2.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 3V to 3.6V.
It is available in a 176-LQFP (24x24 mm) surface-mount package.
The operating temperature range is -20°C to 75°C.
The core processor is a 32-bit SH-2 DSP.
256 KB.
110 I/O pins.
