HD6417727F100CV The Renesas HD6417727F100CV is a 32-bit microcontroller featuring a ROMless program memory type and a speed of 100MHz. It operates at voltages between 1.6V and 2.05V.
Mfr Part #:

HD6417727F100CV

Available from 3 distributors
Mfr Name: Renesas
Renesas
The Renesas HD6417727F100CV is a 32-bit microcontroller featuring a ROMless program memory type and a speed of 100MHz. It operates at voltages between 1.6V and 2.05V.
✓ Total Stock: 7,069 pcs

HD6417727F100CV Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,600 pcs
On Request
3600 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
2,264 pcs
On Request
2264 pcs On Request 1 On Request On Request On Request On Request On Request
Romaks Technologies ✓
Non-Authorised Inventory information
1,205 pcs
On Request
1205 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HD6417727F100CV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
View Similar Products (0)

HD6417727F100CV Description

Short technical summary and product information.

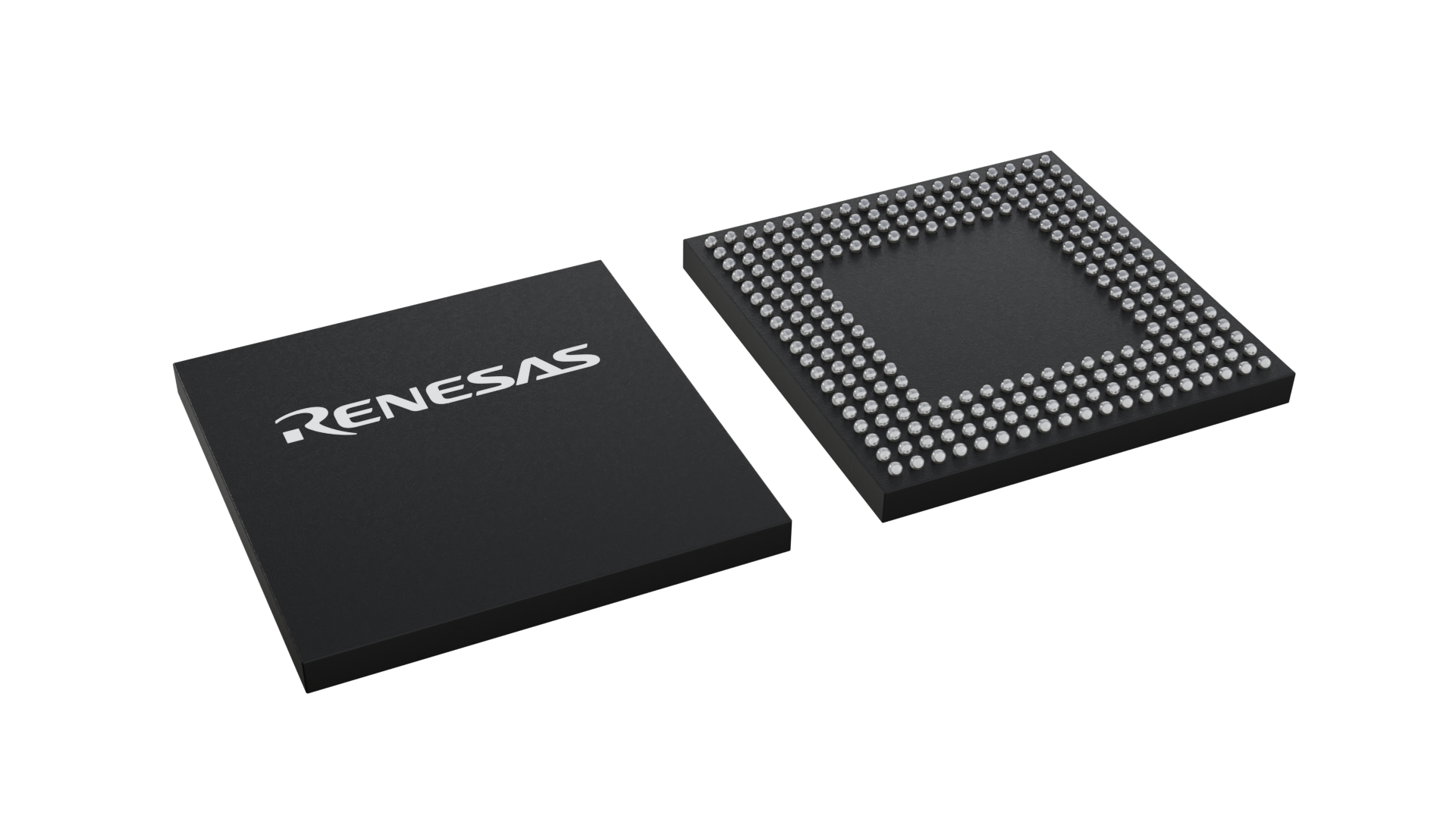

The Renesas HD6417727F100CV is a 32-bit microcontroller based on the SH-3 DSP core, operating at a speed of 100MHz. This device features a ROMless program memory type and 32K x 8 RAM size.



With an operating voltage range of 1.6V to 2.05V and an operating temperature of -20°C to 75°C (TA), the HD6417727F100CV is suitable for various embedded applications. It includes peripherals such as DMA, LCD, POR, and WDT, and offers data conversion capabilities with A/D 6x10b and D/A 2x8b.



The microcontroller supports connectivity options including FIFO, SCI, SIO, SmartCard, and USB. It is supplied in a 240-HQFP (32x32) package, specifically a 240-BFQFP Exposed Pad, designed for surface mounting.



Key specifications include 104 I/O lines and an internal oscillator type. The device is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.

HD6417727F100CV Quick Information

Product Type: Microcontroller
Canonical Name: Renesas HD6417727F100CV 32-Bit Microcontroller
Subcategory: 32-Bit

HD6417727F100CV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HD6417727F100CV Features

  • 32-bit SH-3 DSP core microcontroller.
  • 100MHz operating speed.
  • ROMless program memory type.
  • 32K x 8 RAM size.
  • Surface mount 240-HQFP package.

HD6417727F100CV Applications

  • Suitable for embedded systems.
  • Features DMA and LCD controllers.
  • Supports USB and SmartCard connectivity.
  • Includes data conversion capabilities.

HD6417727F100CV FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the HD6417727F100CV?

The operating voltage for the HD6417727F100CV is between 1.6V and 2.05V.

What package type is the HD6417727F100CV supplied in?

The HD6417727F100CV is supplied in a 240-HQFP (32x32) package, specifically a 240-BFQFP Exposed Pad.

What is the operating temperature range for this microcontroller?

The operating temperature range for the HD6417727F100CV is -20°C to 75°C (TA).

Is the HD6417727F100CV RoHS compliant?

The HD6417727F100CV is RoHS3 compliant.
