| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
121 pcs
|
121 pcs | On Request | 1 | On Request | On Request | 99/00+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Number of Pins | |
| SVHC Present | |
| Technology |

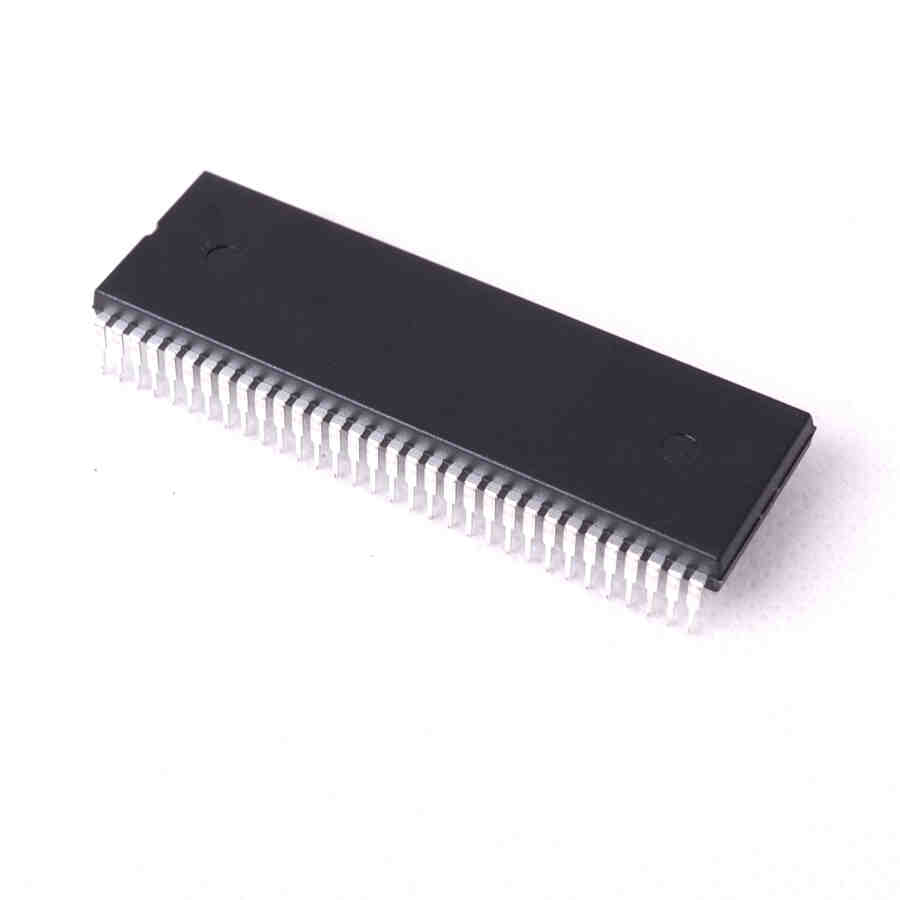

The Hitachi HD63B03XP is an integrated circuit belonging to the microcontroller category. It features a CMOS technology and operates with a nominal supply voltage of 5.0V.
Key electrical specifications include a memory address range of 64k, 24 I/O lines with ByteSerial type, and a maximum clock frequency of 8.0 MHz. It supports 7 address modes and has 3 interrupt lines, including 1 NMI, with 9 maskable interrupts. The instruction length ranges from 8 to 24 bits.
This microcontroller is housed in a 64-pin DIP package and is designed for through-hole mounting. The operating temperature range is from 0°C to 70°C. The pinout equivalence number is 64-121.
Environmental compliance includes RoHS3 Compliant, MSL 1 Unlimited, and REACH Unaffected statuses, though these are noted as having low confidence and requiring verification.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.63 | $6.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal supply voltage is 5.0 V.
It is available in a 64-pin DIP (Dual In-line Package) with through-hole mounting.
The operating temperature range is 0 °C to 70 °C.
The maximum clock frequency is 8.0 MHz.
It provides 24 I/O lines of ByteSerial type, organized into 3 ports.
The memory address range is 64 kB.
