| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,543 pcs
|
5543 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
4,170 pcs
|
4170 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,077 pcs
|
1077 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Active Mode Power | |
| Applications | |
| Differential Bandwidth | |
| ESD | |
| Features | |
| Input Output Voltage (Minimum/Maximum) | |
| Mounting Type | |
| Multiplexer | |
| Number of Channels | |
| Off Isolation | |
| Off-State Leakage Current | |
| Off-state Capacitance | |
| On | |
| On Resistance (Typical/Maximum) | |
| On-Resistance Channel Match | |
| On-State Capacitance | |
| Operating Temperature | |
| Supplier Device Package | |
| Supply Current | |
| Turn-off Time (Disable) | |
| Turn-on Time (Enable) | |
| USB Speed | |
| Voltage | |
| bandwidth (Typical/Nominal) |
The Texas Instruments HD3SS6126RUAR is an active differential switch supporting USB 3.0 and USB 2.0 protocols. It functions as a 2:1/1:2 multiplexer/demultiplexer, ideal for signal switching in USB applications. This device supports data rates up to 10 Gbps on its high-bandwidth path and features a wide -3-dB differential bandwidth of more than 10 GHz.
Key electrical characteristics include a typical on-resistance of 5000 mOhm and a maximum of 8000 mOhm, with a channel match of 0.7 Ohm maximum. The operating voltage range is 3V to 3.6V, and it consumes a typical supply current of 2.4 µA. The switch offers an off isolation of -85 dB and an off-state leakage current of 4 µA maximum.

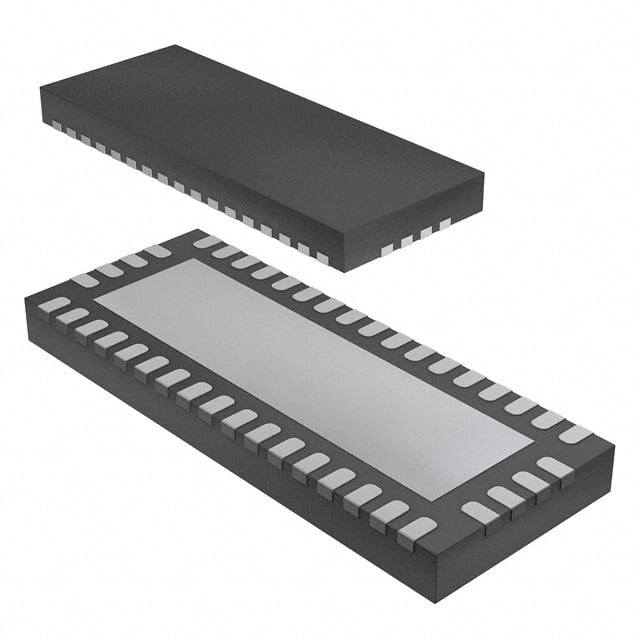

Packaged in a compact 42-WQFN (3.5x9 mm) with an exposed pad, the HD3SS6126RUAR is designed for surface mounting. Its operating temperature range is 0°C to 70°C. This switch is also suitable for DisplayPort, PCIe, SATA, SAS, and XAUI applications, providing versatile signal routing capabilities.
The device utilizes a unique adaptation method to maintain constant channel impedance over the supported common-mode voltage range. It exhibits excellent dynamic characteristics at 2.5 GHz, with crosstalk at -35 dB, isolation at -23 dB, insertion loss at -1.1 dB, and return loss at -11 dB.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.59 | $1.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is 0°C to 70°C.
The typical on-resistance is 5000 mOhm.
The maximum on-resistance is 8000 mOhm.
The maximum on-resistance channel match is 0.7 Ohm.
The typical supply current is 2.4 µA.
The typical off isolation is -85 dB.
The maximum off-state leakage current is 4 µA.
The maximum turn-off time (disable) is 10 ns.
The maximum turn-on time (enable) is 17 ns.
The operating voltage range is 3 V to 3.6 V.
The typical active mode power consumption is 8 mW.
It supports USB 2.0, USB 3.0, USB 3.2 Gen 1x2, and USB 3.2 Gen 2x1.
The bandwidth is 10000 MHz.
It is available in a 42-WQFN (3.5x9) package with an exposed pad.
The mounting type is surface mount.
