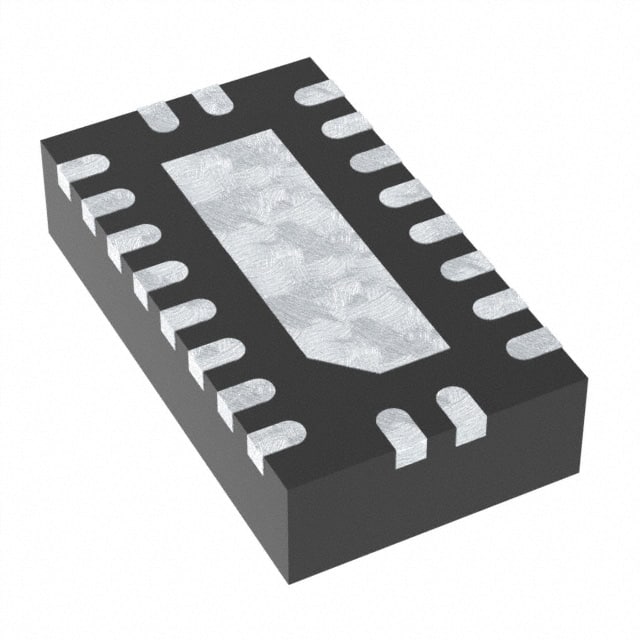

The HD3SS3212RKST from Texas Instruments is a high-speed bidirectional passive switch configured as a 2:1 multiplexer or 1:2 demultiplexer. It is specifically designed for USB Type-C ecosystems, supporting USB 3.1 Gen 1 and Gen 2 data rates.
This device operates at speeds up to 10 Gbps and features a wide -3-dB differential bandwidth exceeding 8 GHz. Key electrical characteristics include an insertion loss of -1.6 dB, off-isolation of -19 dB, and a return loss of -12 dB at 5 GHz. The switch offers 8 Ohm on-resistance and operates with a single 3.3V supply voltage.
The HD3SS3212RKST is compatible with various high-speed interfaces including MIPI DSI/CSI, FPD-Link III, LVDS, and PCIe Gen II/III. It is housed in a 20-VQFN exposed pad package and is designed for surface mount applications. The operating temperature range is 0°C to 70°C.
This component is suitable for applications requiring flexible signal routing in USB Type-C implementations, ensuring reliable data transmission at high speeds.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.05 | $1.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is 0°C to 70°C.
The HD3SS3212RKST is available in a 20-VQFN exposed pad package.
The HD3SS3212RKST is RoHS3 Compliant.
The MSL rating is Level-1.
The HD3SS3212RKST supports data rates up to 10 Gbps.
The HD3SS3212RKST has a bandwidth of over 8 GHz.
The on-resistance of the HD3SS3212RKST is 8 Ohm.
