| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bandwidth | |
| Configuration | |
| Crosstalk | |
| Features | |
| Insertion Loss | |
| Mounting Type | |
| Multiplexer | |
| Number of Channels | |
| On | |
| Operating Temperature | |
| Return Loss | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Current | |
| Supply Voltage | |
| Switch Circuit |
The HD3SS3212RKSRQ1 from Texas Instruments is a specialized analog switch designed for automotive applications, functioning as a two-channel differential 2:1 and 1:2 multiplexer/demultiplexer. This device is engineered to support the USB Type-C ecosystem, enabling USB 3.2 Gen 1 and Gen 2 data rates up to 10 Gbps.
With a wide -3dB differential bandwidth exceeding 8 GHz, the HD3SS3212RKSRQ1 offers excellent dynamic characteristics suitable for high-speed data transmission. It is also compatible with other interface standards including MIPI DSI/CSI, FPD-Link III, LVDS, and PCIe Gen II, III.

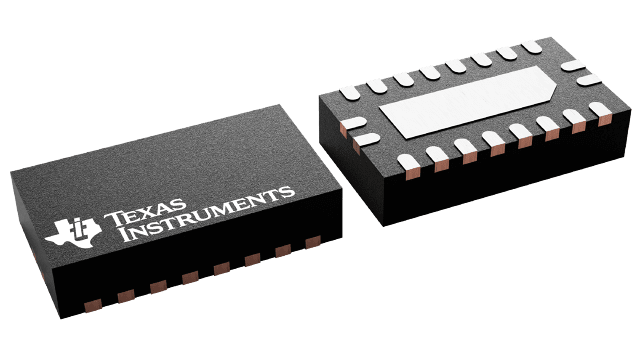

The switch operates with a typical on-resistance of 5000 mOhm and supports a common-mode voltage range from 0 V to 2 V. It is housed in a 20-VQFN (2.5mm x 4.5mm) package, designed for surface mounting. The operating temperature range is specified from -40°C to 105°C (TA), and it is AEC-Q100 qualified for automotive applications.
Key electrical specifications include a typical ESD HBM rating of 2 kV and a maximum supply current of 800 µA. The device provides a bidirectional "Mux/De-Mux" differential switch functionality, making it a versatile component for complex interface management in automotive systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.10 | $1.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HD3SS3212RKSRQ1 supports USB 3.2 Gen 1 and Gen 2 data rates up to 10 Gbps.
The HD3SS3212RKSRQ1 has 2 channels.
The typical on-resistance for the HD3SS3212RKSRQ1 is 5000 mOhm.
The operating temperature range is -40°C to 105°C (TA).
The HD3SS3212RKSRQ1 is available in a 20-VQFN (2.5x4.5) package.
The device has a wide -3dB differential bandwidth of over 8 GHz.
Yes, the HD3SS3212RKSRQ1 is AEC-Q100 qualified for automotive applications.
