| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

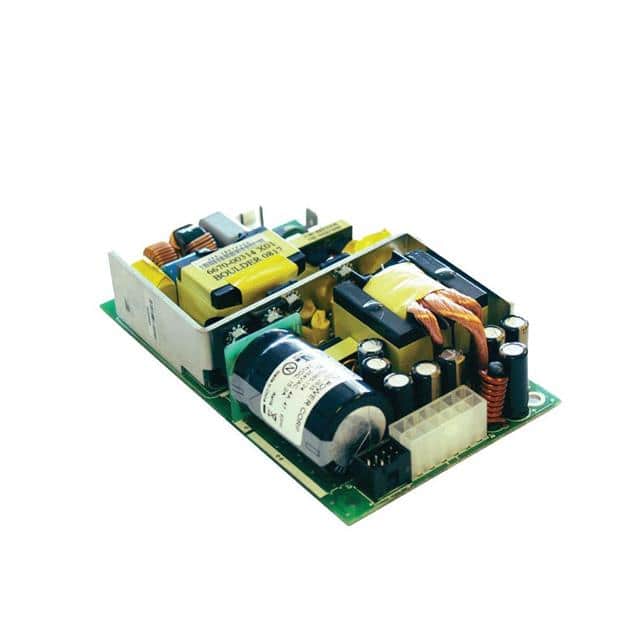

The HD365-119 from Digital Power Corporation is an AC DC power supply designed for ITE (Commercial) and Medical applications. This open-frame converter offers a robust 200W of power, with a peak capability of 365W under forced air conditions, and delivers 19.2A of current.
Key electrical specifications include a wide input voltage range of 90-264 VAC or 170-370 VDC, and an efficiency rating of 90%. The unit supports features such as adjustable output, DC input capability, Power Factor Correction (PFC), remote on/off control, and a standby output. Its operating temperature range is -20°C to 70°C with derating.
Mechanically, the HD365-119 is designed for chassis mounting and measures 127.0mm x 76.2mm x 35.6mm. It has received certifications from CE, cCSAus, and NEMKO, and complies with standards such as 60601-1 and 60950-1. The product is RoHS3 Compliant, has an MSL rating of 1, and is REACH Unaffected.
90-264 VAC or 170-370 VDC.
19V at 19.2A.
90%.
Adjustable Output, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input.
CE, cCSAus, NEMKO.
-20°C to 70°C with derating.
Chassis Mount.
