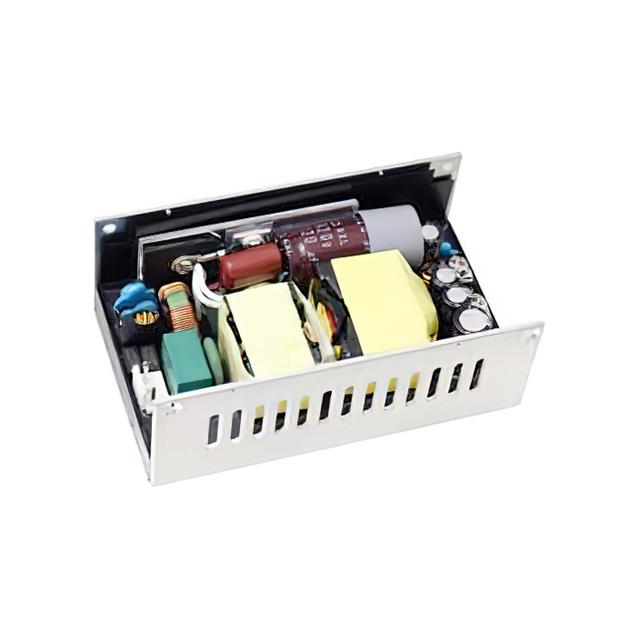

The HD240U-124 from Digital Power Corporation is an open frame AC DC converter designed for ITE (Commercial) applications. It operates with an input voltage range of 90 to 264 VAC and delivers a stable 24V output at 10A, providing a total power of 240W. The converter boasts a high efficiency of 93% and operates within a temperature range of -30°C to 80°C with derating.
With a chassis mount type, this unit is suitable for integration into various systems. Its dimensions are 4.10" L x 2.46" W x 1.54" H (104.1mm x 62.5mm x 39.1mm). The HD240U-124 is approved by IEC and UL standards, meeting the requirements of 62368-1.
This AC DC converter is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. It is designed for reliable performance in commercial and industrial environments.
The output voltage is 24V.
The output current is 10A.
The power rating is 240W.
The efficiency is 93%.
The operating temperature range is -30°C to 80°C (With Derating).
The dimensions are 4.10" L x 2.46" W x 1.54" H (104.1mm x 62.5mm x 39.1mm).
The RoHS status is RoHS3 Compliant.
