| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

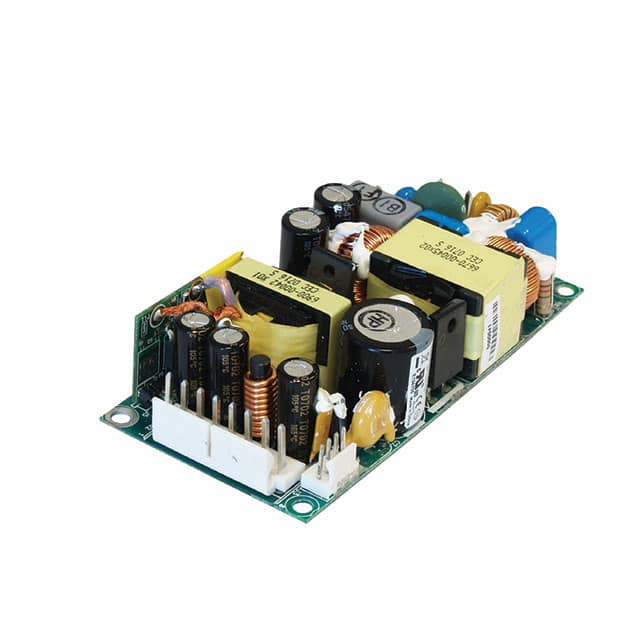

The HD160-105 from Digital Power Corporation is a 160 Watt High-Density AC/DC Power Supply, specifically the 5V model delivering 100W. It operates over a universal AC input range of 90-264V AC or 170-370V DC.
Key electrical specifications include a 100W output power, 20A output current, 90% efficiency, and active Power Factor Correction (PFC). It also provides an auxiliary 12V, 0.5A output for fan operation. The power supply meets stringent safety and EMC standards, including CSA/UL 60601-1 and 60950-1, and is CE marked.
Designed for high-density applications, this open frame power supply has a compact 2" x 4" footprint and a low profile of 1.06" height. It is suitable for ITE (Commercial) and Medical applications, operating within a temperature range of -20°C to 70°C with derating.
Mounting is chassis mount. The HD160-105 series is RoHS3 compliant and has an MSL of 1.
The HD160-105 accepts 90-264 VAC or 170-370 VDC input.
The converter provides a single 5V output at 20A, with total power of 100W.
The HD160-105 operates from -20°C to 70°C with derating.
It is chassis mount and comes in an open frame package.
It is approved to CE, CSA, and NEMKO, meeting standards 60601-1 (medical) and 60950-1 (ITE).
Yes, it has PFC with a power factor of 0.98 at 230VAC.
