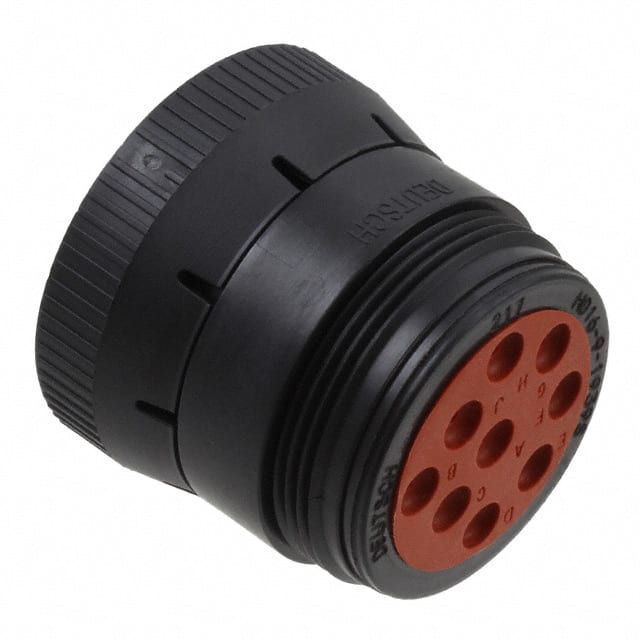

The TE Connectivity HD16-9-1939S is a circular connector plug housing designed for use with female socket contacts. It accommodates 9 positions with contact size 16 and uses crimp termination. The housing is constructed from glass-filled polyamide (nylon) in a black finish, providing a durable and lightweight solution.
This housing features a bayonet lock fastening system for secure mating and is keyed for proper orientation. It is unshielded and designed for free hanging (in-line) mounting. The shell size is 9-39 and includes a coupling nut for ease of assembly.
Environmental protection is rated IP68, indicating dust-tight and waterproof performance. The material flammability rating is UL94 V-1, suitable for applications requiring flame retardance. This housing is intended for use in harsh environments where reliable sealing and mechanical retention are required.
The HD16-9-1939S has 9 positions.
It accepts crimp contacts of size 16.
It is rated IP68, meaning it is dust tight and waterproof.
It is designed for free hanging (in-line) mounting.
The housing is made of polyamide (nylon) with glass filling.
The material flammability rating is UL94 V-1.
