| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,627 pcs
|
8627 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Fastening Type | |
| Housing Color | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination Style | |
| Type |

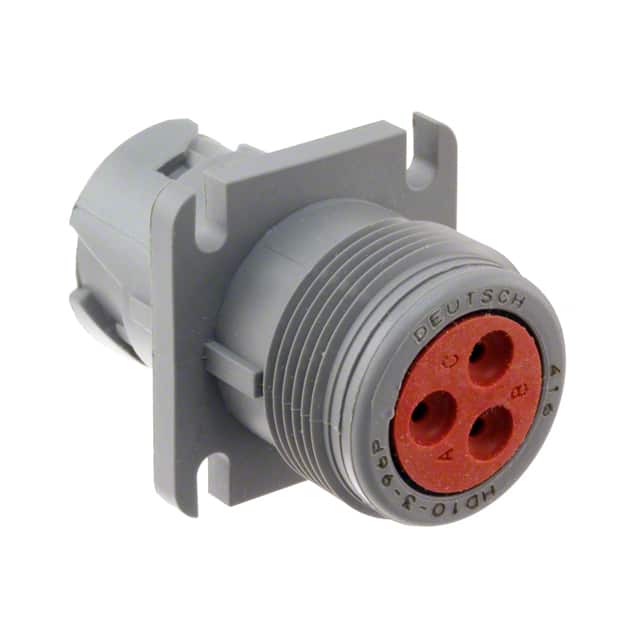

The HD10-3-96P is a circular connector receptacle housing from TE Connectivity, designed to accommodate male pin contacts. It is part of the HD10 series and provides a durable, waterproof interface for harsh environments.
This housing features 3 positions with a shell size of 3-96. It mounts to a panel using a flange and secures via a bayonet lock mechanism. The orientation is keyed to prevent misalignment.
The shell is constructed from glass-filled polyamide (nylon) in a gray color. It is unshielded and rated IP68 for dust tightness and waterproof submersion. The material meets UL94 V-1 flammability rating.
The housing accepts crimp contacts of size 16. It is suitable for applications requiring reliable connectivity in demanding conditions, such as industrial control systems and automotive environments.
The housing has 3 positions for male pins.
Panel mount with flange.
IP68 - Dust tight and waterproof.
Polyamide (PA), Nylon, Glass Filled.
Bayonet lock.
UL94 V-1.
Crimp contacts, size 16.
