| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Data Rate | |
| Lead Spacing | |
| Mounting Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |

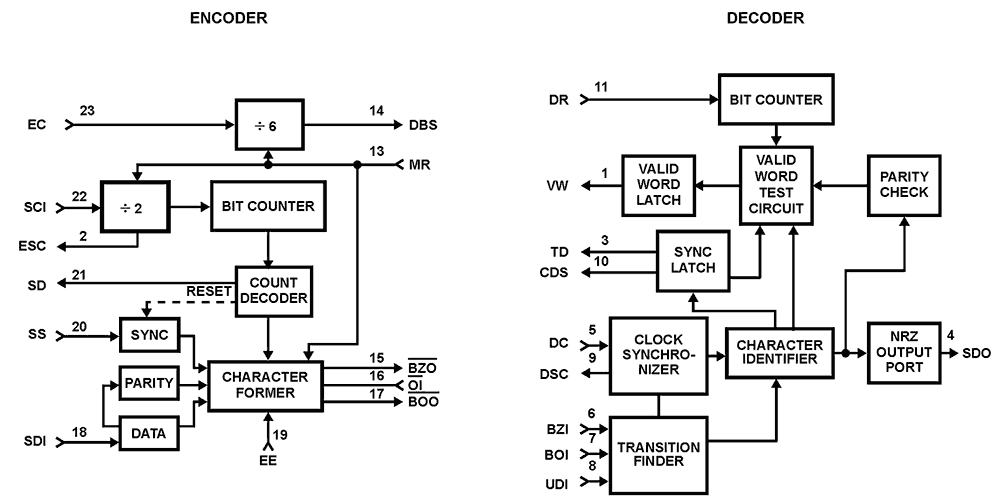

The HD1-6408-9 from Renesas is a CMOS/LSI Manchester Encoder/Decoder chip designed for creating high-speed asynchronous serial data buses. It features Manchester II encoding and decoding capabilities, enabling clock recovery and excellent noise immunity.
This device supports data rates of up to 1 Mbit/s and operates on a single 4.5V to 5.5V power supply, consuming low operating power of typically 50mW at 5V. The HD1-6408-9 is suitable for various commercial applications, including security systems, environmental control systems, and serial data links.
Packaged in a 24-lead CERDIP, the HD1-6408-9 is designed for through-hole mounting. It offers features such as low bit error rate, sync identification and lock-in, and separate encode/decode functions. The component is RoHS3 compliant.
An alternative part, HD3-6408-9Z, is available as a recommended replacement.
The HD1-6408-9 supports data rates up to 1 Mbit/s.
The operating voltage range for the HD1-6408-9 is 4.5V to 5.5V.
The HD1-6408-9 is available in a 24-CDIP package.
The HD1-6408-9 is designed for through-hole mounting.
Yes, the HD1-6408-9 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the HD1-6408-9 is 1.
