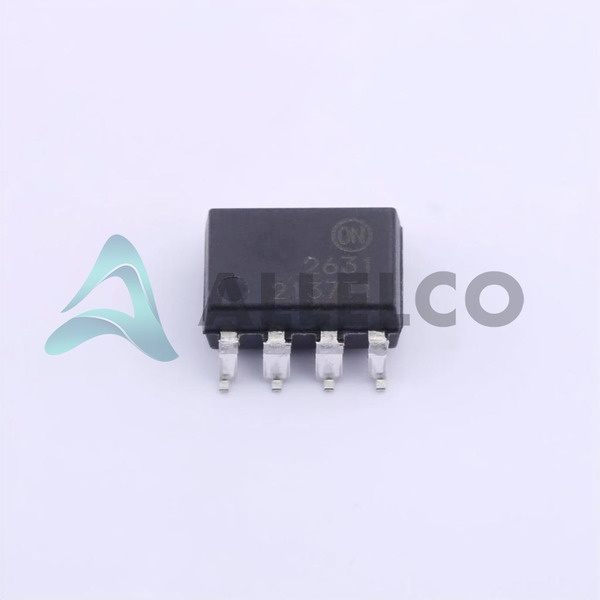

HCPL2631 The On Semiconductor HCPL2631 is a dual channel optoisolator featuring 2500Vrms isolation and an open collector output. It is designed for through-hole mounting.
Mfr Part #:

HCPL2631

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor HCPL2631 is a dual channel optoisolator featuring 2500Vrms isolation and an open collector output. It is designed for through-hole mounting.
✓ Total Stock: 46,785 pcs
$ Price Range: $0.50

HCPL2631 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
32,661 pcs
On Request
32661 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
8,879 pcs
On Request
8879 pcs On Request 1 On Request On Request 1435+ On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,245 pcs
On Request
5245 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HCPL2631 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Common Mode Transient Immunity (Min)
Current
Data Rate
Industrial Grade
Input Type
Inputs
Lead Spacing
Medical Grade
Military Grade
Mounting Type
Number of Channels
Operating Temperature
Output Type
Propagation Delay tpLH
Rise
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

HCPL2631 Description

Short technical summary and product information.

The On Semiconductor HCPL2631 is a dual-channel optoisolator designed for logic output applications. It provides 2500Vrms of isolation, ensuring signal integrity and protection in electronic circuits.



This optoisolator operates with a current rating of 30mA and supports a data rate of up to 10Mbps. It features an open collector output type, suitable for various interfacing needs. The device has a propagation delay of 75ns (tPLH) and rise times of 50ns and 12ns, with a common mode transient immunity of 5kV/µs.



Designed for through-hole mounting, the HCPL2631 comes in an 8-DIP package. It operates within a temperature range of -40°C to 85°C, making it suitable for a variety of environmental conditions. The input type is DC, and it has 2/0 inputs specified.



This component is RoHS3 compliant, has an MSL rating of 1, and is REACH unaffected. Its robust design and specifications make it a reliable choice for isolation needs in industrial and electronic systems.

HCPL2631 Quick Information

Product Type: Optoisolator
Canonical Name: HCPL2631 Dual Channel Optoisolator
Subcategory: Logic Output

HCPL2631 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HCPL2631 Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

HCPL2631 Features

  • Dual channel optoisolator for logic output.
  • 2500Vrms isolation voltage rating.
  • 10Mbps maximum data rate.
  • Open collector output type.
  • Through-hole mounting in 8-DIP package.

HCPL2631 Applications

  • Electrical isolation in industrial control systems
  • Signal coupling in communication interfaces
  • Isolation in motor drive circuits
  • Protection of sensitive electronics

HCPL2631 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the HCPL2631 optoisolator?

The HCPL2631 optoisolator provides 2500Vrms of isolation.

What is the data rate for the HCPL2631?

The HCPL2631 supports a data rate of 10Mbps.

What type of output does the HCPL2631 have?

The HCPL2631 features an Open Collector, Schottky Clamped output type.

What is the operating temperature range for the HCPL2631?

The HCPL2631 operates between -40°C and 85°C.

How is the HCPL2631 mounted?

The HCPL2631 is designed for through-hole mounting.

What package is the HCPL2631 supplied in?

The HCPL2631 is supplied in an 8-DIP (0.300", 7.62mm) package.
