| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
160 pcs
|
160 pcs | On Request | 20 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Failure Rate | |
| Number of Channels | |
| Number of Pins |

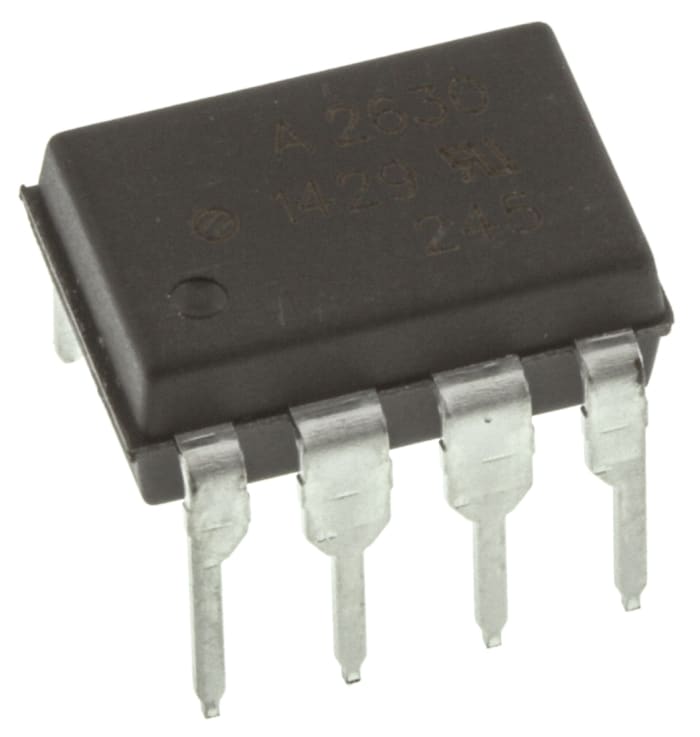

The Broadcom HCPL-2630-000E is a 2-channel DC input optocoupler designed for isolated communication logic interfaces and control in industrial power systems, factory automation, power supplies, and medical equipment. It features a through-hole mounting type in an 8-pin DIP package.
Key electrical specifications include a maximum forward voltage of 1.75V, an isolation voltage of 3.75kVrms, and a maximum input current of 20mA. The device offers logic output and operates over a temperature range of -40°C to 85°C. It has a typical rise time of 24ns and a typical fall time of 10ns.
This optocoupler meets CSA and UL standards and is AEC-Q100 qualified, making it suitable for automotive applications. The packaging is supplied in a tube.
Applications include isolated logic interfaces, control in industrial power systems, factory automation, power supplies, and medical equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum forward voltage is 1.75V.
It has 2 channels.
It is housed in a DIP package.
It operates from -40°C to 85°C.
RoHS compliance status is unverified.
