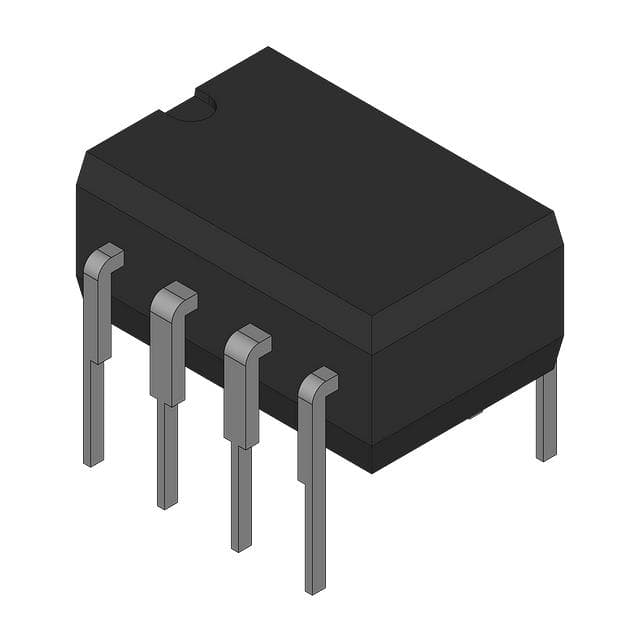

HCPL2601 The HCPL2601 is an optoisolator from On Semiconductor with 2500Vrms isolation and an Open Collector output. It is designed for logic output applications.
Mfr Part #:

HCPL2601

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The HCPL2601 is an optoisolator from On Semiconductor with 2500Vrms isolation and an Open Collector output. It is designed for logic output applications.
✓ Total Stock: 4,053 pcs
$ Price Range: $0.50

HCPL2601 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
53 pcs
On Request
53 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HCPL2601 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Common Mode Transient Immunity (Min)
Current
Data Rate
Input Type
Inputs
Lead Spacing
Mounting Type
Number of Channels
Operating Temperature
Output Type
Propagation Delay tpLH
Rise
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

HCPL2601 Description

Short technical summary and product information.

The HCPL2601 optoisolator by On Semiconductor provides 2500Vrms of isolation and features an Open Collector output type. It operates with a data rate of up to 10Mbps and has a common mode transient immunity of 5kV/µs.



This component is housed in an 8-DIP package and is designed for Through Hole mounting. It operates within a temperature range of -40°C to 85°C and handles a current of 50mA. The HCPL2601 is suitable for applications requiring reliable signal isolation and logic-level interfacing.



Key electrical characteristics include a 1-channel configuration, DC input type, and specific rise and propagation delay times. Its robust design makes it a suitable choice for various industrial and electronic applications demanding high isolation performance.

HCPL2601 Quick Information

Product Type: Optoisolator
Canonical Name: HCPL2601 Optoisolator - Logic Output
Subcategory: Logic Output

HCPL2601 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HCPL2601 Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

HCPL2601 Features

  • 2500Vrms isolation voltage rating.
  • 10Mbps maximum data rate.
  • Open Collector output type.
  • 8-DIP package for Through Hole mounting.
  • Operates from -40°C to 85°C.

HCPL2601 Applications

  • Provides reliable signal isolation.
  • Suitable for logic output circuits.
  • Used in industrial control systems.
  • Facilitates data communication interfaces.

HCPL2601 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the HCPL2601?

The HCPL2601 operates between -40°C and 85°C.

What package type is the HCPL2601 available in?

The HCPL2601 is available in an 8-DIP package.

What is the isolation voltage of the HCPL2601?

The HCPL2601 provides 2500Vrms of isolation.

What is the data rate of the HCPL2601 optoisolator?

The HCPL2601 has a data rate of 10Mbps.

What is the output type of the HCPL2601?

The HCPL2601 features an Open Collector output type.

How many channels does the HCPL2601 have?

The HCPL2601 has 1 channel.
