HCPL2531TSR2VM The HCPL2531TSR2VM from On Semiconductor is a 2-channel optoisolator featuring transistor output and 5000Vrms isolation. It operates with a typical forward voltage of 1.45V.
Mfr Part #:

HCPL2531TSR2VM

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The HCPL2531TSR2VM from On Semiconductor is a 2-channel optoisolator featuring transistor output and 5000Vrms isolation. It operates with a typical forward voltage of 1.45V.
✓ Total Stock: 1,400 pcs
$ Price Range: $0.50

HCPL2531TSR2VM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
1,400 pcs
On Request
1400 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HCPL2531TSR2VM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Type
Lead Style
Mounting Type
Number of Channels
Output Type
Tape & Reel
View Similar Products (0)

HCPL2531TSR2VM Description

Short technical summary and product information.

The HCPL2531TSR2VM by On Semiconductor is a 2-channel optoisolator designed for signal isolation applications. It provides a high isolation voltage of 5000Vrms, ensuring robust protection in various electronic systems.



This optoisolator features a transistor output type and operates with a DC input. Key electrical specifications include a typical forward voltage of 1.45V and a maximum DC forward current of 25mA. The output current per channel is 8mA, with a maximum output voltage of 20V. It offers a current transfer ratio ranging from 19% to 50% at 16mA.

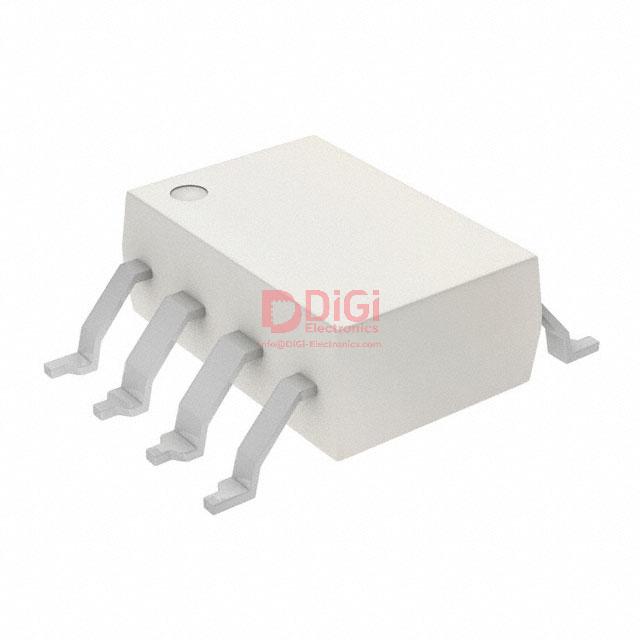

The device is housed in an 8-SMD package suitable for surface mounting. Its typical turn-on and turn-off times are 250ns and 260ns, respectively. The HCPL2531TSR2VM is designed for reliable performance in demanding environments.

HCPL2531TSR2VM Quick Information

Product Type: Optoisolator
Series: HCPL2531
Canonical Name: HCPL2531TSR2VM 2-Channel Transistor Output Optoisolator
Subcategory: Transistor, Photovoltaic Output Optoisolators

HCPL2531TSR2VM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HCPL2531TSR2VM Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

HCPL2531TSR2VM Features

  • 2-channel transistor output optoisolator.
  • 5000Vrms high isolation voltage.
  • Surface mount 8-SMD package.
  • Typical 1.45V forward voltage.
  • Fast switching times around 250ns.

HCPL2531TSR2VM Applications

  • Provides reliable signal isolation.
  • Suitable for power supply control.
  • Used in industrial automation systems.
  • Applicable in communication interfaces.

HCPL2531TSR2VM FAQs

5 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the HCPL2531TSR2VM?

The HCPL2531TSR2VM offers an isolation voltage of 5000Vrms.

What is the typical forward voltage for this optoisolator?

The typical forward voltage (Vf) for the HCPL2531TSR2VM is 1.45V.

How many channels does the HCPL2531TSR2VM have?

This optoisolator has 2 channels.

What is the output type of the HCPL2531TSR2VM?

The HCPL2531TSR2VM features a transistor output.

What is the package type for the HCPL2531TSR2VM?

The HCPL2531TSR2VM is supplied in an 8-SMD package.
