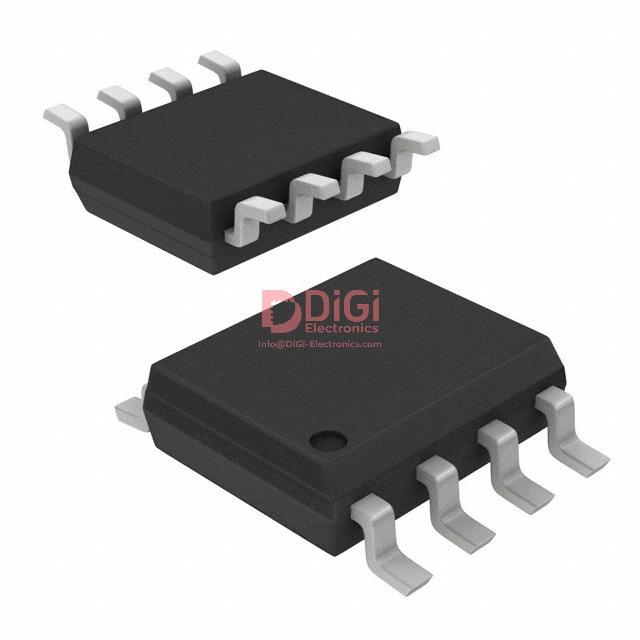

HCPL0630 The ON Semiconductor HCPL0630 is a dual-channel logic gate optocoupler with a 10MBd data rate and 3750Vrms isolation. It features an open collector, Schottky clamped output.
Mfr Part #:

HCPL0630

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor HCPL0630 is a dual-channel logic gate optocoupler with a 10MBd data rate and 3750Vrms isolation. It features an open collector, Schottky clamped output.
✓ Total Stock: 4,700 pcs
$ Price Range: $0.50

HCPL0630 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,700 pcs
On Request
4700 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HCPL0630 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Data Rate
Forward Voltage
Input Type
Inputs
Mounting Type
Number of Channels
Operating Temperature
Output Current
Output Type
Propagation Delay tpLH
Rise
Supplier Device Package
Supplier Package
Tape & Reel
Voltage
View Similar Products (0)

HCPL0630 Description

Short technical summary and product information.

The ON Semiconductor HCPL0630 is a high-speed, dual-channel logic gate optocoupler designed for demanding applications. It offers a data rate of 10MBd and provides 3750Vrms of isolation.



Key electrical characteristics include an open collector, Schottky clamped output type, and a typical forward voltage of 1.5V. The device operates over a temperature range of -40°C to 85°C and supports a maximum output current of 50mA. Its common mode transient immunity is rated at a minimum of 5kV/µs, ensuring robust performance in noisy environments.



Packaged in an 8-SO Tall surface-mount package, the HCPL0630 is suitable for various integration needs. The device is designed for applications requiring high-speed signal isolation and data transmission, such as line receivers and computer-peripheral interfaces.



This optocoupler is built on a CMOS process for reduced power consumption. It is recognized under U.L. File # E90700, with VDE approval pending. The HCPL0630 is ideal for replacing pulse transformers and eliminating ground loops in electronic systems.

HCPL0630 Quick Information

Product Type: Logic Gate Optocoupler
Canonical Name: HCPL0630 Dual Channel Logic Gate Optocoupler
Subcategory: Logic Output

HCPL0630 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HCPL0630 Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

HCPL0630 Features

  • Dual-channel logic gate optocoupler.
  • High speed 10MBd data rate.
  • 3750Vrms isolation voltage.
  • Open collector, Schottky clamped output.
  • Wide -40°C to 85°C operating temperature.

HCPL0630 Applications

  • High-speed data transmission.
  • Line receiver applications.
  • Ground loop elimination.
  • Pulse transformer replacement.
  • Computer-peripheral interfaces.

HCPL0630 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the data rate of the HCPL0630 optocoupler?

The HCPL0630 optocoupler has a data rate of 10 Mbit/s.

What is the isolation voltage provided by the HCPL0630?

The HCPL0630 provides 3750Vrms of isolation voltage.

What is the operating temperature range for the HCPL0630?

The HCPL0630 operates within a temperature range of -40°C to 85°C.

What type of output does the HCPL0630 feature?

The HCPL0630 features an open collector, Schottky clamped output.

How is the HCPL0630 optocoupler mounted?

The HCPL0630 is a surface mount device.

What is the package type for the HCPL0630?

The HCPL0630 is supplied in an 8-SO Tall package, specifically 8-SOIC (0.154", 3.90mm Width).
