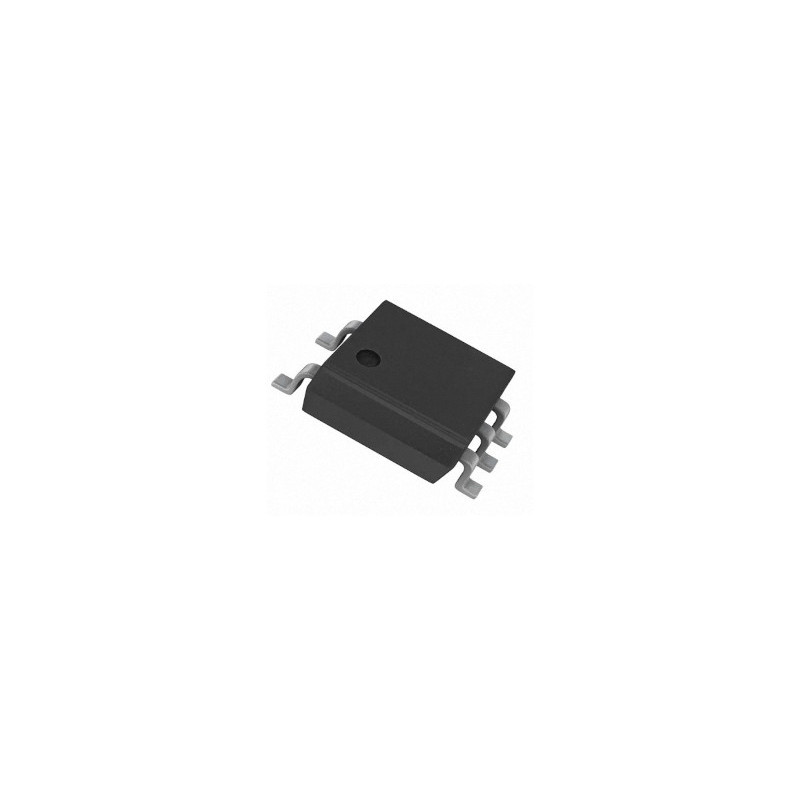

The HCPL-M601-000E from Avago Technologies is a single-channel optocoupler designed for reliable signal isolation. It combines a GaAsP light-emitting diode with a high-gain photon detector, featuring an open-collector Schottky-clamped transistor output.
This optocoupler provides 3.75kVrms of isolation voltage and a slew rate of 10kV/μs, making it suitable for applications requiring robust electrical separation. Key electrical characteristics include a typical forward voltage of 1.5V at 20mA forward current and a typical output current of 50mA. It operates at a supply voltage of 5V DC.
The HCPL-M601-000E is supplied in an SO5 surface-mount package. Its typical propagation delays are 50ns for tPHL and 48ns for tPLH. The operating temperature range is -40°C to +100°C.
Applications for this optocoupler include isolated line receivers, simplex/multiplex data transmission, computer-peripheral interfaces, microprocessor system interfaces, digital isolation for A/D and D/A conversion, switching power supplies, instrument input/output isolation, ground loop elimination, and as a pulse transformer replacement.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HCPL-M601-000E offers 3.75kVrms of isolation voltage.
The operating temperature range for the HCPL-M601-000E is -40°C to +100°C.
The HCPL-M601-000E is supplied in an SO5 surface mount package.
The typical forward voltage (Vf) for the HCPL-M601-000E is 1.5V.
The typical output current for the HCPL-M601-000E is 50mA.
The typical propagation delays for the HCPL-M601-000E are 50ns (tPHL) and 48ns (tPLH).
