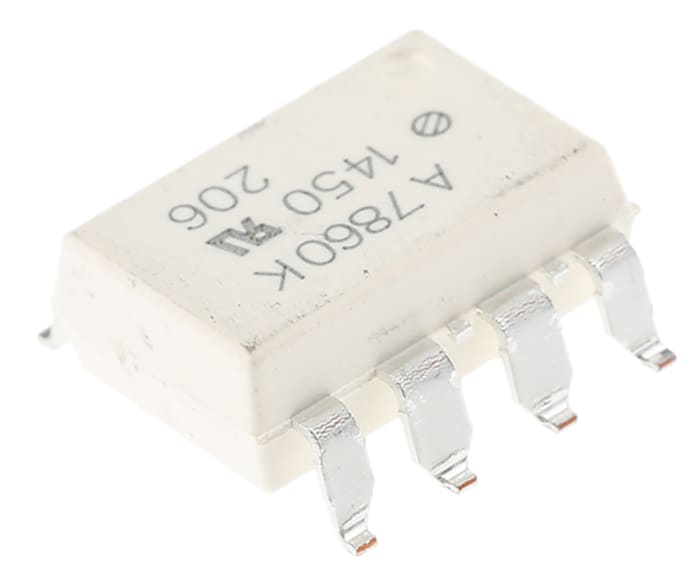

The Broadcom HCPL-7860-300E is a 12-bit isolated module designed for precision current and voltage sensing in power converters. It utilizes advanced Sigma-Delta modulator technology, offering an alternative to traditional Hall effect sensors.
Key electrical specifications include a nominal supply voltage of 5V, a maximum forward voltage of 0.2V, and a maximum input current of 15mA. The module provides 3.75kVrms of isolation and operates with a single supply. Its 12-bit resolution ensures accurate measurements.
Packaged in an 8-SMD, Gull Wing configuration, this component is designed for surface mounting. It operates reliably within a temperature range of -40°C to 85°C. The HCPL-7860-300E is suitable for applications such as motor speed drives, power inverters, and general isolation circuits.
Compliance includes RoHS3, MSL 1, and REACH Unaffected. The series is HCPL-786.
The isolation voltage is 3.75kVrms.
The operating temperature range is -40°C to 85°C.
It is available in an 8-SMD, Gull Wing package for surface mounting.
The resolution is 12 bits.
The nominal supply voltage is 5V.
