Mfr Part #:

HCPL-7800A-000E

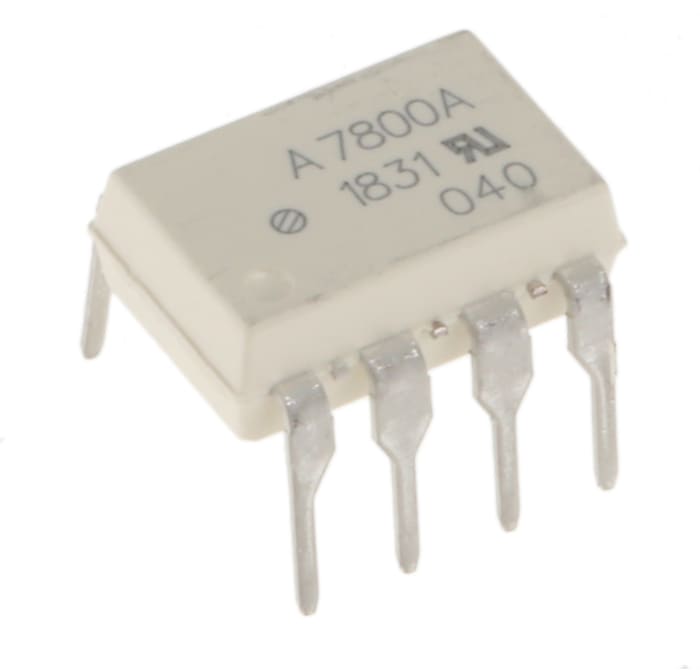

The Broadcom HCPL-7800A-000E is an isolation amplifier featuring a 4.5V to 5.5V supply voltage and 3750Vrms isolation. It is housed in a DIP-8 package.

✓ Total Stock: 4,137 pcs

$ Price Range: $0.99

HCPL-7800A-000E Available from 4 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	3,209 pcs On Request	3209 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Fe Components ✓ Non-Authorised Inventory information	460 pcs On Request	460 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	460 pcs On Request	460 pcs	On Request	1	On Request	On Request	20+	On Request	On Request
Partservice ✓ Non-Authorised Inventory information	8 pcs On Request	8 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

HCPL-7800A-000E Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Avago Technologies
Channels	1
Dimensions	9.8mm
Storage Temperature	°C ~ °C
Tape & Reel	No

View Similar Products (0)

HCPL-7800A-000E Description

Short technical summary and product information.

The Broadcom HCPL-7800A-000E is an isolation amplifier designed for industrial environments, providing high voltage insulation and unwanted signal isolation. It utilizes sigma-delta modulator technology for precise current and voltage sensing in applications like motor drives and power inverters.

Key electrical specifications include a supply voltage range of 4.5V to 5.5V, a single channel, and an isolation voltage of 3750Vrms. The amplifier offers a typical input offset voltage of 0.3 mV and a common mode rejection ratio of 76dB.

This component operates within a temperature range of -40°C to 100°C. It is available in an 8-pin DIP-8 package, suitable for both surface mount and through-hole applications. The dimensions are 9.8mm in length and 1.78mm in height. It meets standards such as UL 1577, IEC/EN/DIN EN 60747-5-2, and CSA.

This isolation amplifier serves as a suitable alternative to Hall Effect devices for current and voltage sensing in power converters, offering high CMR performance and built-in safety insulation.

HCPL-7800A-000E Quick Information

Product Type: Isolation Amplifier

Series: HCPL-7800A

Canonical Name: Broadcom HCPL-7800A-000E Isolation Amplifier

Subcategory: Optoisolators - Triac, SCR Output

HCPL-7800A-000E Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

HCPL-7800A-000E Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

HCPL-7800A-000E Features

Isolation amplifier for industrial environments.
Wide supply voltage range of 4.5V to 5.5V.
High isolation voltage of 3750Vrms.
8-pin DIP-8 package for versatile mounting.
Wide operating temperature from -40°C to 100°C.

HCPL-7800A-000E Applications

Ideal for motor drive applications.
Used in power inverters.
Suitable for general isolation circuits.
Effective for current sensing.
Useful for voltage sensing.

HCPL-7800A-000E FAQs

5 frequently asked questions generated from this part’s specifications.

What is the supply voltage range for the HCPL-7800A-000E?

The supply voltage range is from 4.5V to 5.5V.

What is the isolation voltage of the HCPL-7800A-000E?

The isolation voltage is 3750Vrms.

What is the operating temperature range for this isolation amplifier?

The operating temperature range is from -40°C to 100°C.

What package type is the HCPL-7800A-000E supplied in?

It is supplied in a DIP-8 package.

What are the RoHS and REACH statuses for the HCPL-7800A-000E?

The RoHS status is RoHS3 Compliant, and the REACH status is REACH Unaffected.
