The Broadcom Limited HCPL-7560-300E is an 8-bit Sigma-Delta Modulator designed for specialized data acquisition applications. This component offers 4 channels and operates from a single supply voltage ranging from 4.5V to 5.5V.
With a resolution of 8 bits, the HCPL-7560-300E is suitable for applications requiring precise analog-to-digital conversion. It is designed to operate within a temperature range of -40°C to 85°C (TA), ensuring reliable performance in various environmental conditions.

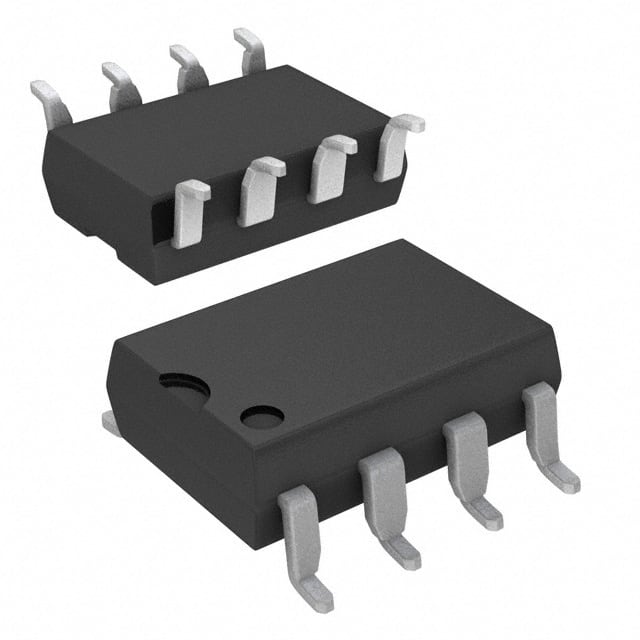

The device is housed in an 8-SMD, Gull Wing package, facilitating surface mounting onto printed circuit boards. Its compact size and surface-mount capability make it ideal for integration into space-constrained designs. The component is classified under ADCsDACs - Special Purpose within the Data Acquisition category.
The HCPL-7560-300E is a Sigma-Delta Modulator.
The resolution of the HCPL-7560-300E is 8 bits.
The HCPL-7560-300E has 4 channels.
The operating voltage for the HCPL-7560-300E is between 4.5V and 5.5V.
The operating temperature range is -40°C to 85°C (TA).
The HCPL-7560-300E is supplied in an 8-SMD, Gull Wing package.
The mounting type is Surface Mount.
