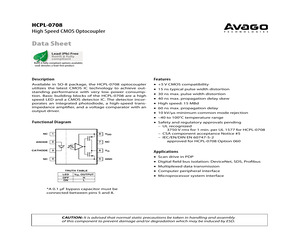

HCPL-0708

The HCPL-0708 is a high-speed logic output optocoupler manufactured by Agilent Technologies. This single-channel device provides reliable electrical isolation between input and output circuits while transmitting digital signals at data rates up to 15 Mbps. It features a push-pull totem pole output stage capable of driving loads up to 2 A, making it suitable for direct interfacing with logic families.

Engineered for demanding environments, the HCPL-0708 operates across a wide temperature range from -40°C to 100°C. The device offers a maximum isolation voltage of 3750 Vrms, ensuring safe separation between high-voltage and low-voltage domains. With a typical propagation delay of 60 ns and rise/fall times of 20 ns and 25 ns respectively, it maintains signal integrity in fast-switching applications.

Packaged in a compact 8-SOIC surface-mount footprint measuring 0.154 inches in width, the HCPL-0708 facilitates automated PCB assembly and space-constrained designs. Its DC input type and continuous forward current rating of 16 mA simplify driver circuit design. This component is widely utilized in industrial automation, process control systems, and data communication interfaces requiring galvanic isolation.
