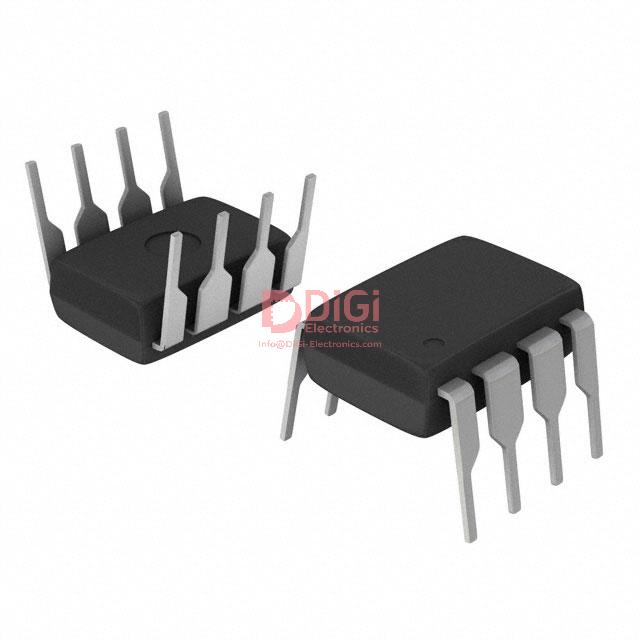

The Broadcom Limited HCPL-4701-020E is a digital isolator designed for high-voltage isolation applications. It provides 5000Vrms of isolation, ensuring safety and signal integrity in demanding environments.
This optoisolator features a Darlington output type and operates with a DC input. Key electrical characteristics include a minimum current transfer ratio of 600% at 500µA and a maximum of 8000% at 500µA. The typical forward voltage is 1.25V, and it can deliver up to 60mA of output current per channel. The maximum output voltage is rated at 18V.
The HCPL-4701-020E is supplied in an 8-DIP (Dual In-line Package) package, suitable for through-hole mounting. Its active product status indicates it is currently available for new designs.
This component is ideal for applications requiring robust isolation between circuits, such as power supply control, motor drives, and industrial automation systems where high voltage transients are common.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.30 | $4.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HCPL-4701-020E offers 5000Vrms of isolation voltage.
The current transfer ratio ranges from a minimum of 600% at 500µA to a maximum of 8000% at 500µA.
The typical forward voltage is 1.25V.
The output type is Darlington with Base.
The HCPL-4701-020E is supplied in an 8-DIP package.
