| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
750 pcs
|
750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Common Mode Transient Immunity (Min) | |
| Current | |
| Data Rate | |
| Input Type | |
| Inputs | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Propagation Delay tpLH | |
| Rise | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage | |
| Voltage Supply |

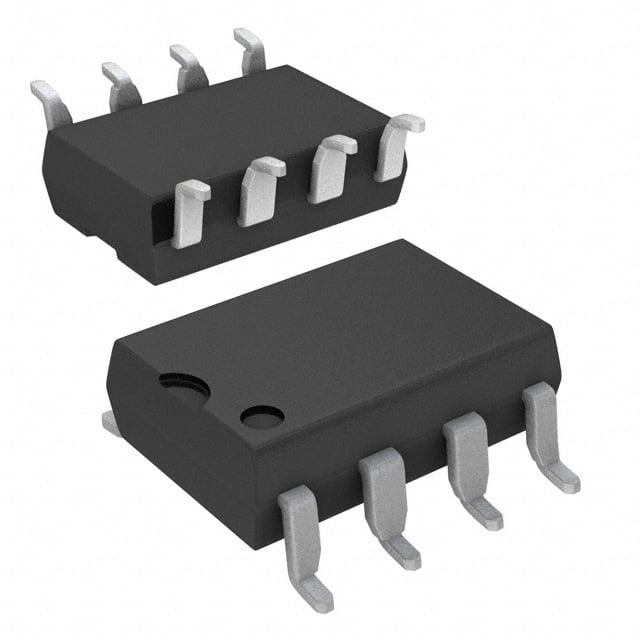

The Broadcom Limited HCPL-4661-320E is a two-channel logic output optoisolator designed for high-voltage isolation applications. It offers 5000Vrms of isolation and a common mode transient immunity of 15kV/µs, ensuring reliable operation in noisy environments.
This optoisolator features an open collector, Schottky clamped output and supports a data rate of 10MBd. It operates with a supply voltage range of 4.5V to 5.5V and has a typical forward voltage of 1.5V. The device is suitable for a wide operating temperature range of -40°C to 85°C.
Packaged in an 8-SMD, Gull Wing format, the HCPL-4661-320E is designed for surface mounting. Its robust specifications make it a suitable choice for various industrial and communication applications requiring signal isolation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HCPL-4661-320E offers 5000Vrms of isolation voltage.
The HCPL-4661-320E supports a data rate of 10MBd.
The HCPL-4661-320E operates within a temperature range of -40°C to 85°C.
The HCPL-4661-320E features an open collector, Schottky clamped output.
The HCPL-4661-320E is supplied in an 8-SMD, Gull Wing package.
