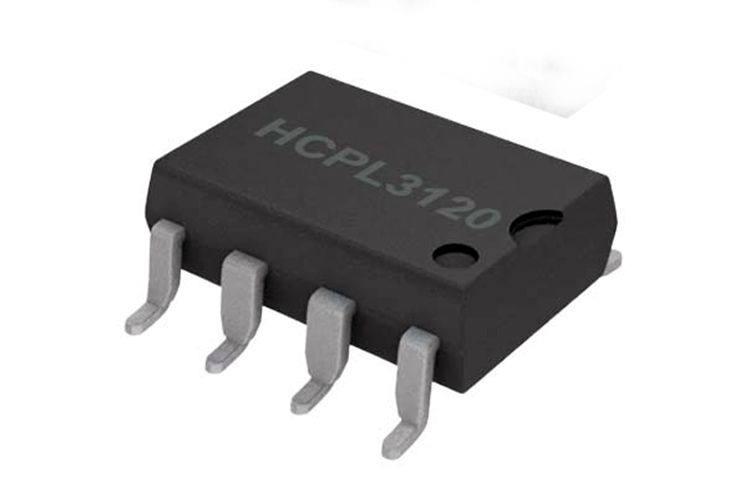

HCPL-3120

The HCPL-3120 from Broadcom is a gate drive optocoupler specifically designed for high-power applications involving IGBTs and MOSFETs. It provides essential optical isolation to protect control electronics from high common-mode voltages often found in noisy switching environments. This component facilitates floating gate drive voltages and ensures that logic input signals are completely isolated from the high-voltage switching side.

Key electrical specifications include a minimum output current of 2A and a maximum of 2.5A. It operates with a supply voltage range of 15V to 30V and features switching speeds of 500ns. The HCPL-3120 also includes undervoltage lockout protection with hysteresis.

This optocoupler is suitable for driving MOSFET and IGBT gates, which present a capacitive load requiring rapid charging and discharging for efficient high-speed switching. Its design helps prevent devices from operating in the linear region, thereby reducing conduction losses and preventing switching losses. Applications include IGBT/MOSFET gate drive, AC and brushless DC motor drives, inverters, and switch-mode power supplies.
