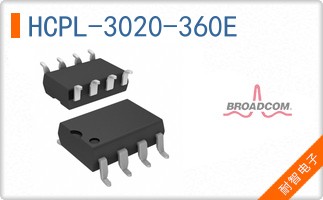

The Broadcom Limited HCPL-3020-360E is a single-channel optocoupler designed for gate driving applications. It provides robust isolation with a withstand voltage of 3750Vrms, making it suitable for high-voltage environments.
Key electrical specifications include a high Common Mode Transient Immunity (CMTI) of 10kV/µs, ensuring reliable operation in noisy conditions. The device offers a typical output current of 200mA and a peak output current of 400mA. It operates within a supply voltage range of 10V to 30V and features a typical forward voltage of 1.5V at 20mA.
Designed for surface mounting, the HCPL-3020-360E comes in an 8-DIP Gull Wing package. It operates across a wide temperature range of -40°C to 100°C. This gate driver is ideal for applications requiring reliable isolation and efficient driving of IGBT and MOSFET power transistors.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.55 | $2.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HCPL-3020-360E has an isolation voltage of 3750Vrms.
The operating temperature range for the HCPL-3020-360E is -40°C to 100°C.
The HCPL-3020-360E is supplied in an 8-DIP Gull Wing package for surface mounting.
The typical output current for the HCPL-3020-360E is 200mA.
The minimum Common Mode Transient Immunity for the HCPL-3020-360E is 10kV/µs.
