| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Common Mode Transient Immunity (Min) | |
| Current | |
| Data Rate | |
| Input Type | |
| Inputs | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Propagation Delay tpLH | |
| Rise | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

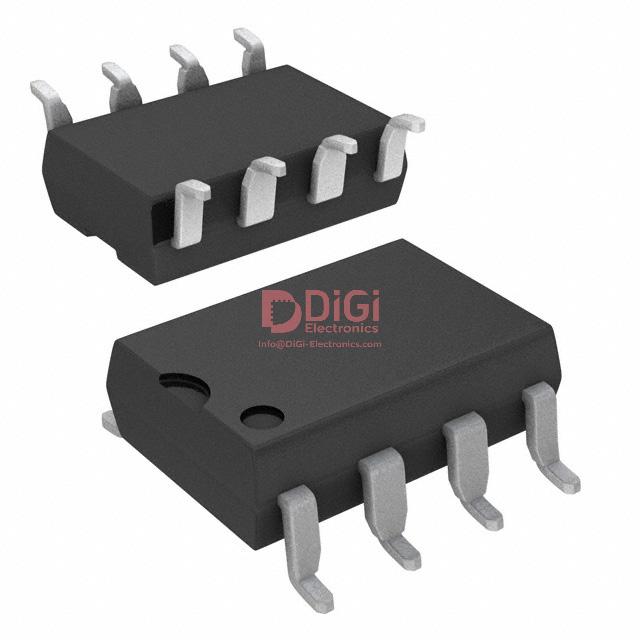

The Broadcom Limited HCPL-263L-320E is a logic output optoisolator designed for reliable signal isolation. It offers a high isolation voltage of 5000Vrms and a data rate of 15MBd, making it suitable for various applications requiring electrical separation.
This optoisolator features 2 channels with DC input type and an open collector, Schottky clamped output. It has a common mode transient immunity of 10kV/µs, ensuring signal integrity in noisy environments. The device operates within a temperature range of -40°C to 85°C.
Packaged in an 8-DIP Gull Wing (SMD, Gull Wing) format, the HCPL-263L-320E is designed for surface mount applications. Its specifications include a maximum propagation delay of 75ns and a current output of 50mA per channel.
This component is part of the logic output optoisolator category, providing essential isolation for electronic circuits. Its robust design and specifications make it a reliable choice for demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HCPL-263L-320E offers an isolation voltage of 5000Vrms.
The data rate for the HCPL-263L-320E is 15MBd.
This optoisolator has 2 channels.
The operating temperature range is -40°C to 85°C.
It features an open collector, Schottky clamped output.
The package is an 8-SMD, Gull Wing, designed for surface mounting.
